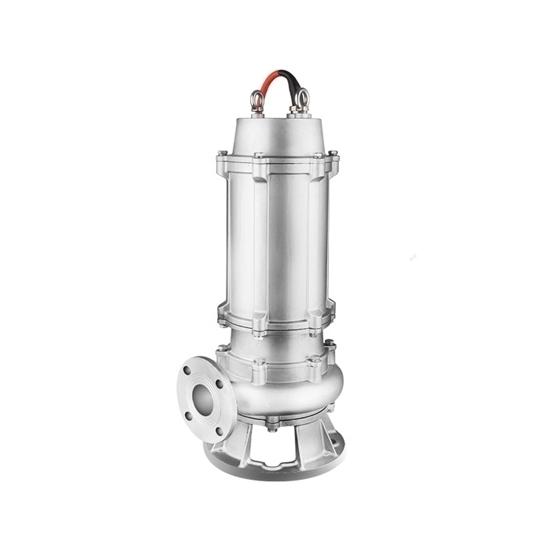

3 HP Stainless Steel Submersible Sewage Pump

Quality 304 or 316 stainless steel submersible sewage pump comes with 2.2kW power, 220V/380V voltage, 100mm caliber, and flange connection. This 3 hp submersible cutter pump is commonly used in sewage systems, wastewater treatment plants, industrial processes and other environments where contaminated or dirty water needs to be treated.

Specifications

• Model: ATO-100WQP50-7-2.2
• Connection Method: Flanged
• Material: 304/316 Stainless Steel
• Rated Flow: 50m³/h
• Rated Lift: 7m
• Power: 2.2kW (3 hp)
• Caliber: 100mm
• Voltage: 3 Phase 220V/380V (Contact us for customized voltage)
• Rotation Speed: 2900r/min
• Size: 27x21x58cm
• Weight: 42kg

Notes

• When using a stainless steel sewage pump, the medium temperature should not exceed 50°C (ordinary motor), not exceed 100°C (high-temperature motor), the density should be 1.0-1.3kg/m³, and the PH index should be between 0-14.
• The motor part shall not expose more than 1/2 of the liquid surface.
• Stainless steel submersible sewage pumps must be used within the operating lift range to ensure that the motor is not overloaded.

Details

Applications

Tips: Why choose a stainless steel sewage pump over other materials?

Choosing a stainless steel sewage pump over other materials is justified by its superior corrosion resistance. Stainless steel excels in environments where sewage may contain corrosive elements, making it ideal for coastal areas, industrial settings, and applications with abrasive fluids. While stainless steel pumps typically have a higher initial cost, this investment pays off in extended durability and longevity. The material's resistance to corrosion ensures reliable performance over time, reducing maintenance and replacement costs. Additionally, stainless steel pumps offer a sleek appearance, making them suitable for various installations where aesthetics are a consideration.
