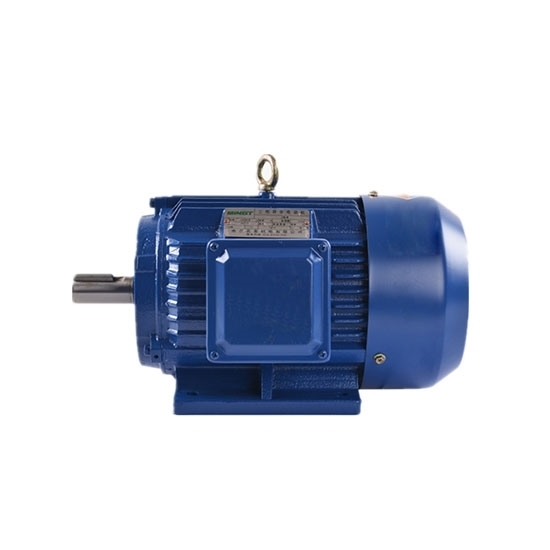

    3 hp (2.2kW) 3 phase 4 pole AC Induction Motor

    5 out of 5 based on 1 reviews | Write a review
    $589.57
    As a three phase squirrel-cage induction motor or or asynchronous motor, it is designed in line with IEC standards, with rated output 3hp / 2.2kW, 4-pole 1420 rpm rated speed, and rated voltage 380V 50Hz. Due to its rugged constuction, low cost and minimum maintenance, 3-phase induction motor is widely used as industrial drives.
    SKU: ATO-IM-22004P
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    With the remarkable features of high efficiency, low noise, ease in operation and low price, 3 hp (2.2kW) 3-phase 4-pole AC induction motor or asynchronous motor can be widely used in various kinds of general purpose machineries like fans, pumps, compressors, machine tools, transportation and so on.

    3hp Induction Motor Specification

    Basics Model ATO-Y2-100L1-4
    Design Standard IEC
    Weight 30kg
    Frame Type 100L
    Mounting Horizontal Foot Mounting (B3)
    Wiring Method Output≤4hp (3kW), Y connection
    Output≥5.5hp (4kW), Delta connection
    Degree of protection IP54/IP55
    Insulation Class Class F
    Cooling TEFC (compliance to IC 411 code of IEC 60034-6)
    Technical Parameters Nominal Output 3.0hp or 2.2kW
    Pole Number 4-pole
    Nominal Speed 1420rpm
    Frequency 50Hz
    Nominal Voltage 380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
    Nominal Current (full load) 5.09A/8.82A
    Efficiency 81.0%
    Power Factor( cosφ) 0.81
    Nominal Torque (Tn) 14.8Nm
    Locked Rotor Torque/Nominal Torque (TST/Tn) 2.3
    Maximum Torque/Nominal Torque (Tmax/Tn) 2.3
    Locked Rotor Current/Nominal Current (IST/In) 7.0
    Noise Level 64dB/(A)
    Environment Ambient Temperature -15℃+40℃
    Altitude Less than 1000m above sea level

    Three-phase Induction Motor Dimensions

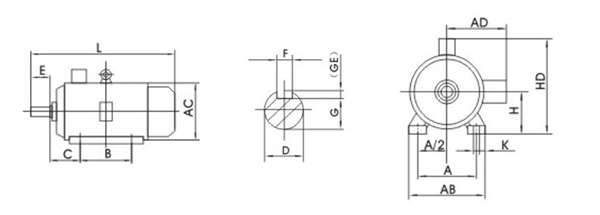

    Three-phase AC induction motor dimensions

    Frame Type Mounting Dimensions (mm) Overall Dimensions
    A A/2 B C D E F G H K AB AC AD HD L
    100L 160 80 140 63 28 60 8 24 100 12 205 215 180 270 385

    Wiring Diagrams (Three-phase squirrel-cage induction motor)
    3 phase induction motor wiring connection diagram

    Details

    2200W AC Induction Motor Details

    Tips: How to change the rotation direction of three-phase induction motor?
    As shown from the working principle of induction motor, the rotation direction of motor rotor is determined by the direction of rotor affected by the electromagnetic torque. However, the direction of electromagnetic torque depends on the direction of stator rotating magnetic field. That is to say the rotation direction of rotor is the same as the one of stator rotating magnetic field. Nevertheless, the direction of the rotating magnetic field depends on the phase sequence of three-phase power supply that has access to the three-phase windings of stator. The direction of rotating magnetic field also changes with the one of phase sequence. Therefore, simply changing the phase sequence of three-phase power supply that has access to the three-phase windings of stator can change the rotation direction of motor. This simple method is realized by connecting any two-phase power wires of three-phase power supple wires into motor.

    • 3 Phase Induction Motor Wiring

    In this video, ATO takes a 1hp (0.75kW) 220V/380V induction motor as example to explain the motor wiring. ATO first changes the wiring of induction motor from star connection to delta connection. When the induction motor is connected in delta connection, the rated voltage of motor is 220V, and when connected in star connection, the rated voltage is 380V. To demonstrate this change clearly, the induction motor is also connected to ATO 1-phase in 3-phase out VFD and it runs normally under the control of VFD.
