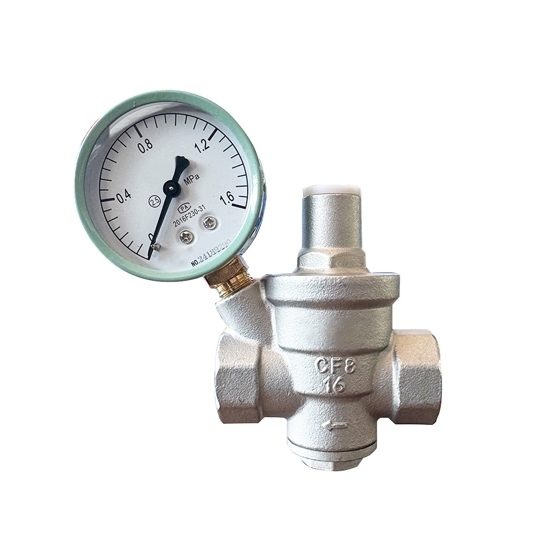

3/4" Spring Loaded Pressure Relief Valve, DN20

Reliable pressure relief valve with DN20 nominal diameter for sale online, pressure deducing valve comes with nominal pressure 16 MPa. The adjustable pressure relief valve is used to limit or control the pressure in a system.

Features

• The pressure relief valve with a gas-tight and compact design which can be adjusted without disassembly.
• Compact size can choose horizontal or vertical installation, easy to install and maintain, simple and convenient to adjust the pressure and easy to operate.
• The active parts of the sealing ring such as the piston and valve sleeve are sprayed with Teflon material, which can effectively reduce the sealing ring's wear and prolong the product's service life.

Specification

• Model: ATO-YS713X-16P-20
• Size: 3/4 inch
• Nominal diameter: DN20
• Material: 304 stainless steel
• Import and export pressure ratio: Maximum 3: 1
• Working temperature: Cold water ≤65 ℃, hot water ≤95 ℃
• Nominal pressure: 16 MPa
• Medium: Drinking water, clean water

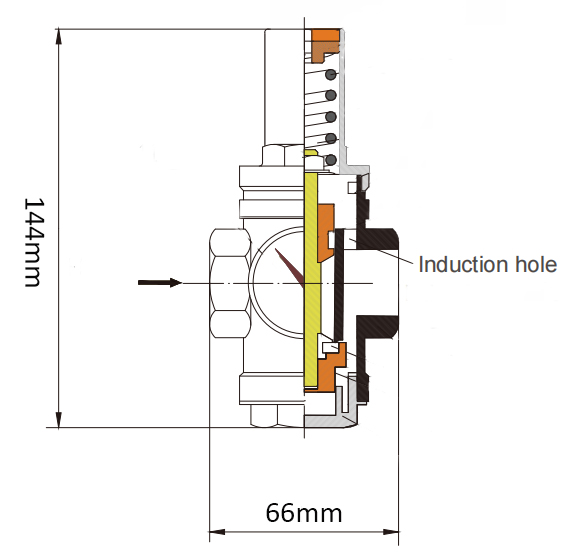

Dimension

Installation

Notes

• It is recommended to install an exhaust valve on the top of the riser to make the pressure reducing valve work more smoothly.
• Before installing the pressure relief valve, check the valve for unusual items and be sure to flush the pipeline.
• Installation method: Horizontal or vertical installation, single valve set.

Pressure Relief Valve Application

Tips: What is a pressure relief valve?

The pressure reducing valve is a valve that reduces the inlet pressure to a certain required outlet pressure through adjustment and relies on the energy of the medium itself to keep the outlet pressure automatically stable. From the point of view of fluid mechanics, the pressure reducing valve is a throttling element whose local resistance can be changed, that is, by changing the throttling area, the flow velocity and the kinetic energy of the fluid are changed, resulting in different pressure losses, so as to achieve the purpose of decompression. Then rely on the adjustment of the control and regulation system to balance the fluctuation of the post-valve pressure with the spring force, so that the post-valve pressure remains constant within a certain error range.
