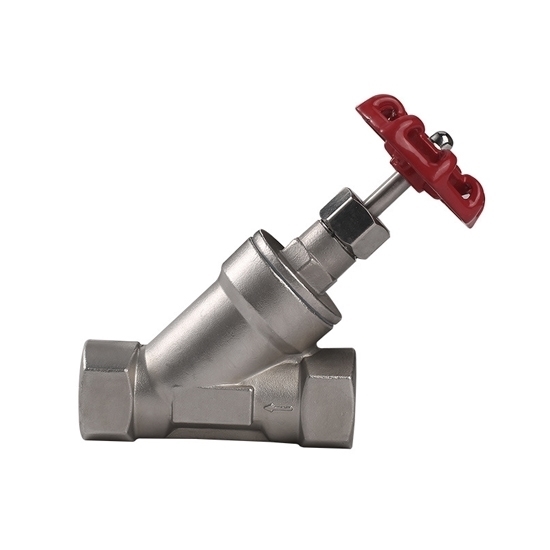

3/4" Manual Angle Seat Valve

With its compact and space-saving design, the manual angle seat valve is easy to install and integrate into existing systems. The angle seat piston valve's reliable performance, coupled with low maintenance requirements, makes it an ideal choice for applications where precision and dependability are paramount.

Specification

• Model: ATO-MANGLE-DN15
• Thread Port Size: 3/4 inch (DN20)
• Working Medium: Air, Water, Oil, Gas, Steam
• Body Material: 304 Stainless Steel
• Driving Mode: Manual
• Mode of action: Single Acting
• Nominal Pressure: 25Mpa
• Sealing Method: Soft Seal
• Sealing Material: PTFE
• Flow Direction: One Way

Manual Angle Seat Valve Dimension

• G: 3/4 inch (DN20)
• L: 95mm

Tips: What is a manual angle seat valve?

A manual angle seat valve is a type of industrial valve designed to control the flow of liquids or gases in a system. It features a linear motion actuator that allows operators to manually regulate the flow by adjusting the valve's position. The valve's seat and sealing element are positioned at an angle to the flow path, creating a tight seal when pressed against the valve body. This design minimizes the risk of leaks and makes the valve suitable for controlling a wide range of media, including corrosive or high-temperature substances.

Manual angle seat valves are commonly used in applications where precise flow control is required, such as in the food and beverage industry, pharmaceuticals, water treatment, and other industrial processes. They are known for their reliability, ease of operation, and ability to handle high flow rates, making them a versatile choice for various fluid control systems.
