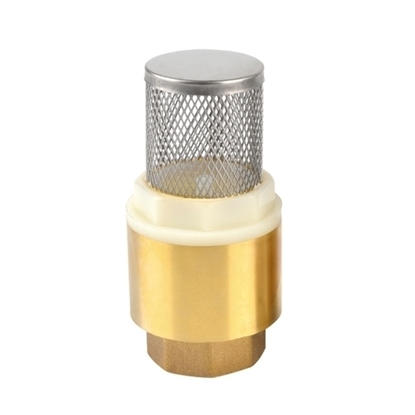

3/4 inch Brass Foot Valve for Water Pump

Buy a quality 3/4 inch brass foot valve for a water pump that can provide reliable and efficient fluid control in your pumping system. DN20, brass body with a stainless mesh, high temperature resistant, ideal for use in harsh environments and corrosive fluids.

Specifications

• Model: ATO-SS6060
• Size: 3/4 inch (DN20, 20mm)
• Main Material: Brass Valve Body/Stainless Mesh Filter/Plastic Valve Core
• Drive Mode: Hydraulic Control
• Connection Form: Internal Thread
• Thread Standard: ISO228
• Shape: Lifting
• Operating Temperature: -20°C≤T≤100°C
• Nominal Pressure: 1.6Mpa
• Working Medium: Water, Oil

Note: Although the foot valve is equipped with an anti-clogging filter, it is generally suitable for clean media, not for media with high viscosity and large particle sizes.

Dimension (Unit: mm)

L:69mm D:35.5mm Weight: 94g

Applications

The foot valve has the advantages of small friction resistance, long service life, energy saving, easy installation, use and maintenance, etc., widely used in water pump supporting facilities in petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage and irrigation and other industries.

Tips: What is a foot valve?

A foot valve is a type of check valve used in pumping systems to control the flow of fluids, typically water. It is installed at the bottom of a vertical pipe or well and is designed to prevent the backflow of fluid from the pump back into the well or source. The valve typically has a strainer or weighted foot at the bottom to prevent debris or sediment from entering the valve and potentially clogging the pump or other equipment. The valve opens when the pump is turned on, allowing fluid to flow into the pump, and closes when the pump is turned off, preventing backflow. Foot valves can be made from a variety of materials, including brass, stainless steel, and plastic, depending on the specific application and the fluid being pumped. They are commonly used in agricultural irrigation systems, industrial and commercial water systems, and oil and gas production, among other applications.
