3/4 hp (0.55kW) Single Phase Induction Motor, 1500rpm/3000rpm

5 out of 5 based on 2 reviews | Write a review

$428.37

High efficiency 0.75 hp single phase motor for sale online. It works at 50Hz/60Hz frequency and is available with speed 1500rpm/3000rpm, 220V/110V/230V/240V voltage. Economical 550W 1 phase induction motor has a start capacitor and run capacitor to provide zero starting torque at rest, easy to repair and maintain, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Voltage (V) *
Speed *

SKU: ATO-SPM-550

Qty:

30-day Returns

Free Shipping

Delivery date: 20-30 days

Overview

Low price 0.75 hp single phase induction motor with two ac capacitors is an induction motor. 1500rpm/3000rpm speed and 220V/110V/230V/240V voltage for selection. 550W single phase asynchronous motor can provide zero starting torque when stationary, high efficiency for homes, offices, stores and smalll non-industrial companies.

3/4 hp Single Phase Induction Motor Specifications

Basics	Model	ATO-YC-80B	ATO-YC-80C
	Protect Feature	Enclosed
	Phase	Single phase
	Power	AC
	Certification	CE
	Type	Asynchronous Motor
	Weight	12.5 kg
Technical Parameters	Output	3/4 hp
		550 W
	Voltage	1 phase 220V/110V/230V/240V
	Current	5.3 A	6.0 A
	Speed	3000 rpm	1500 rpm
	Eff	65%	64%
	Power Factor	0.73	0.65
	st/In	6.5	6
	Tstart/Tn	2.8
	Tmax/Tn	1.8
Operating Conditions	Ambient Temperature	-15℃≤θ≤40℃
	Altitude	exceed 1000m
	Rated Frequency	50Hz/60Hz
	Duty	S1 (continuous)
	Insulation Class	B/F
	Protection Class	IP44/IP54
	Cooling Method	IC0141

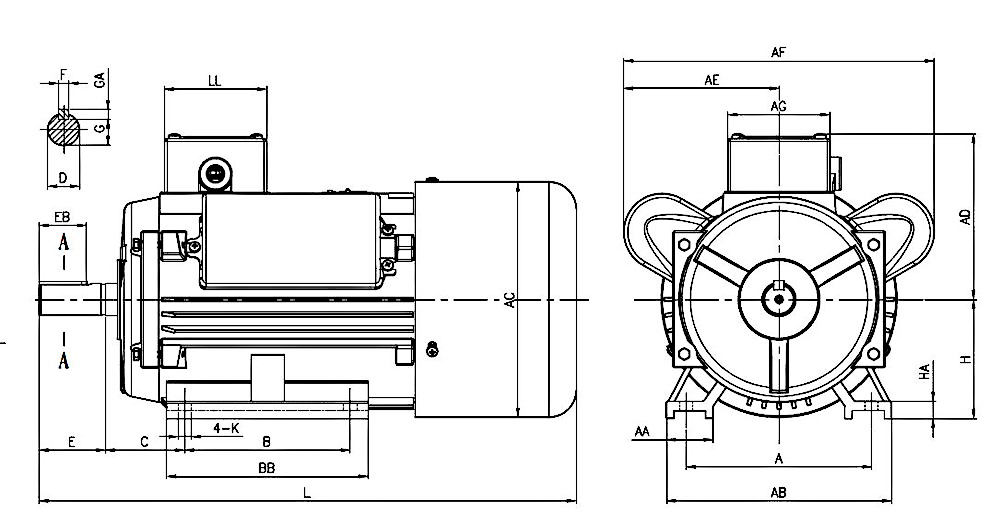

3/4 hp Single Phase Motor Induction Dimension (Unit: mm)

Single Phase Electric Motor Dimension

Model	A	AA	AB	AC	AD	AG	AF	B	BB	C	D	E	EB	EA	F	G	GA	H	HA	K	L	LL
80	125	32	158	160	112	78	208	100	130	50	19	40	30	30	6	15.5	6	80	14	10	318	78

Details

550w Single Phase Induction Motor Details

Tips: Applications Of Single Phase Induction Motors

Single phase induction motors are widely used. Not only is it used in large quantities in production, but it is also closely related to people's daily life. With the improvement of people's living standards, the consumption of single phase motors for household appliances is increasing.

Single phase motors are used in the production of micro water pumps, refiners, threshers, grinders, woodworking machinery, medical equipment, etc. In terms of life, there are electric fans, hairdryers, exhaust fans, washing machines, refrigerators, etc. There are many types, but the power is relatively small.

Existing reviews of 3/4 hp (0.55kW) Single Phase Induction Motor, 1500rpm/3000rpm

Do you have 4 pole motors?

I need it to have four poles.

From: Michael | Date: 04/09/2023

Was this review helpful? Yes No (0/0)

ATO Responded

We can make 4 pole motors, please note 4 poles when placing an order, the price remains unchanged.
Please refer to our website to purchase: https://www.ato.com/3-4-hp-single-phase-motor

Believe to be smart purchase

I bought a 0.55kW induction motor, which came in timely, easy to hook up and is working great. Used it on a compressor.

From: zzt | Date: 26/04/2022

Was this review helpful? Yes No (0/0)
