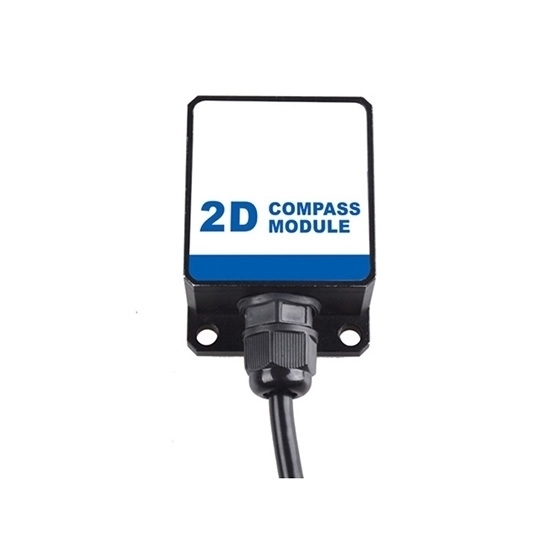

The 2D electronic compass sensor adopts industrial-grade design, uses digital output and has anti-electromagnetic interference function. The measurement range is 0° to 360°, achieving full circular coverage and reliable heading data.
Features
- 2D electronic compass sensor uses an aluminum alloy shell, which has the characteristics of high strength, impact resistance, anti-interference, and rainproof, and is reliable and durable.
- The electronic compass sensor uses an aviation connector, which is waterproof and moisture-proof, and has good stability and high sensitivity.
- Its signal shielding cable is strong and durable, and has undergone rigorous tension, bending, swing and other tests to ensure high reliability.
- This sensor uses an industrial-grade single-chip microcomputer with strong anti-interference ability and a high-precision magnetic sensor and driver chip, integrating hard magnetic and soft magnetic interference compensation technology. The electronic compass function can be integrated into various products.
- It is small in size, low in power consumption, has high shock resistance and high reliability, and can work normally in extreme environments.
Specification
Model |
ATO-SCM225 |
Range |
0-360° |
Accuracy |
1° |
Working voltage |
DC +5V (DC +9~36V can be customized) |
Working temperature |
-40~+70℃ |
Working current |
40mA |
Volume |
55*37*24mm (customizable) |
Output |
RS232/RS485/TTL/RS422/Modbus (optional) |
Performance Indicators |
Compass heading parameters |
Heading accuracy |
1° |
Resolution |
0.1° |
Repeatability |
0.3° |
Heading angle |
Navigation tilt angle range |
+/-5° |
Heading angle measurement range |
0~360° |
Calibration |
Hard iron calibration |
✔ |
Soft iron calibration |
✔ |
Magnetic field interference calibration |
one rotation of the plane (two-dimensional calibration) |
Physical characteristics |
Weight |
75g |
RS-232/RS485 interface connector |
5-pin |
Interface characteristics |
Startup delay |
<50ms |
Maximum sampling rate |
50 times/second |
RS-232 communication rate |
2400~19200 baud rate |
RS-485 communication |
Optional |
TTL communication |
Optional |
Output format |
Hexadecimal |
Power supply |
Supported voltage |
DC+5V (9~36V can be customized) |
Current (maximum) |
40mA |
Operating mode |
30mA |
Environment |
Storage range |
-40℃~+125℃ |
Operating temperature |
-40℃~+70℃ |
Vibration resistance |
2500g |
Note: The default horizontal installation (when the compass is placed horizontally, the roll and pitch angle outputs are zero degrees), and the connector needs to be installed vertically downward (when the compass is placed vertically downward, the roll and pitch angle outputs are zero degrees). Please specify when ordering.

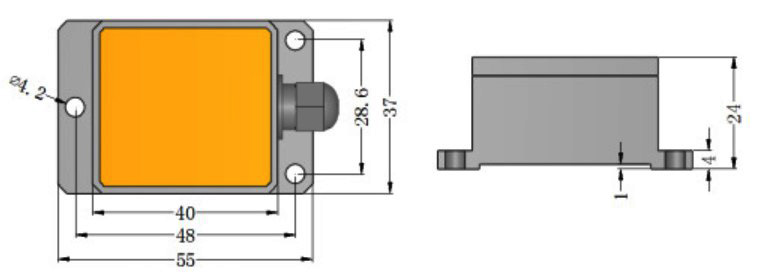

Dimension (mm)
Electrical Connection
Line Color Function |
RED |
WHITE |
BLACK |
GREEN |
YELLOW |
1 |
2 |
3 |
4 |
5 |
VCC |
NC |
GND |
RXD |
TXD |
- RS485 and Modbus Wiring Definition
Line Color Function |
RED |
WHITE |
BLACK |
GREEN |
YELLOW |
1 |
2 |
3 |
4 |
5 |
VCC |
NC |
GND |
(B, D+) |
(A, D+) |
Line Color Function |
RED |
WHITE |
BLACK |
GREEN |
YELLOW |
1 |
2 |
3 |
4 |
5 |
VCC |
NC |
GND |
RXD |
TXD |
Line Color Function |
RED |
BLACK |
GREEN |
YELLOW |
WHITE |
BROWN |
1 |
2 |
3 |
4 |
5 |
6 |
VCC |
GND |
RXD- (B-) |
RXD+ (A+) |
TXD+ (A+) |
TXD- (B-) |
Applications

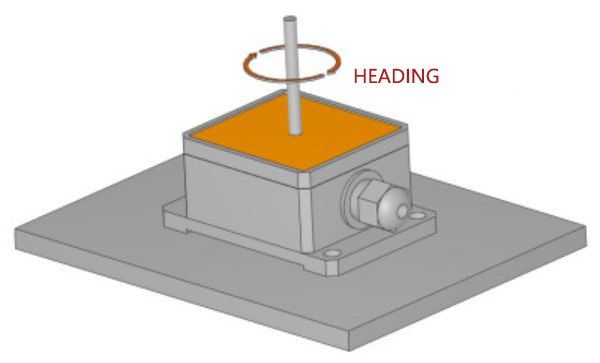

Installation
Tips: Precautions for installing 2D electronic compass sensors
Although the SCM225 2D electronic compass sensor can compensate for magnetic interference, users should choose an environment with minimal magnetic interference to install and use it. Place the sensor as far away from iron, nickel, magnets, motors and other magnetic materials as possible. If there are these magnetic media around, please maintain a distance of at least 0.5m. To ensure the best measurement effect of the product, non-magnetic screwdrivers and non-iron screws must be used during installation. Be sure to strictly avoid strong magnetic materials such as magnets and motors within 10cm of the compass, which may cause irreversible decrease in the measurement accuracy of the compass.
