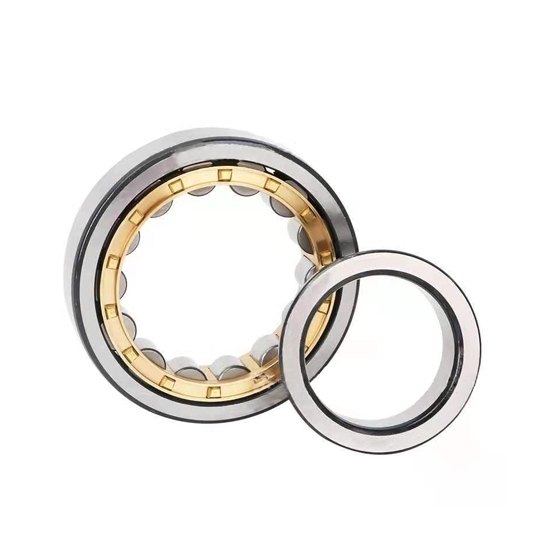

25mm Single Row Cylindrical Roller Bearing

25mm Single Row Cylindrical Roller Bearing

$58.15

Good price cylindrical roller bearing is a single-row roller bearing. The cylindrical roller bearing comes with an inner diameter of 25mm, an outer diameter of 52mm, and a width of 15mm, the accuracy class is P5. The simple structure with cylindrical rollers in linear contact with the raceways.

SKU: ATO-CRB-25

This product has a minimum quantity of 2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Lower cost cylindrical roller bearing with an inner diameter of 25mm, the accuracy class P5, oil lubrication limit speed of 11000 rpm, grease lubrication limit speed of 14000 rpm. The cylindrical roller bearing is made of steel, with a smooth surface and a comfortable handle.

Specification

Model: ATO-NJ205EM
Inner diameter: 25mm
Outer diameter: 52mm
Width: 15mm
Accuracy class: P5
Oil lubrication limit speed: 11000 rpm
Grease lubrication limit speed: 14000 rpm
Cr: 27.5 kN
Cor: 26.8 kN
Bearing material: Bearing steel

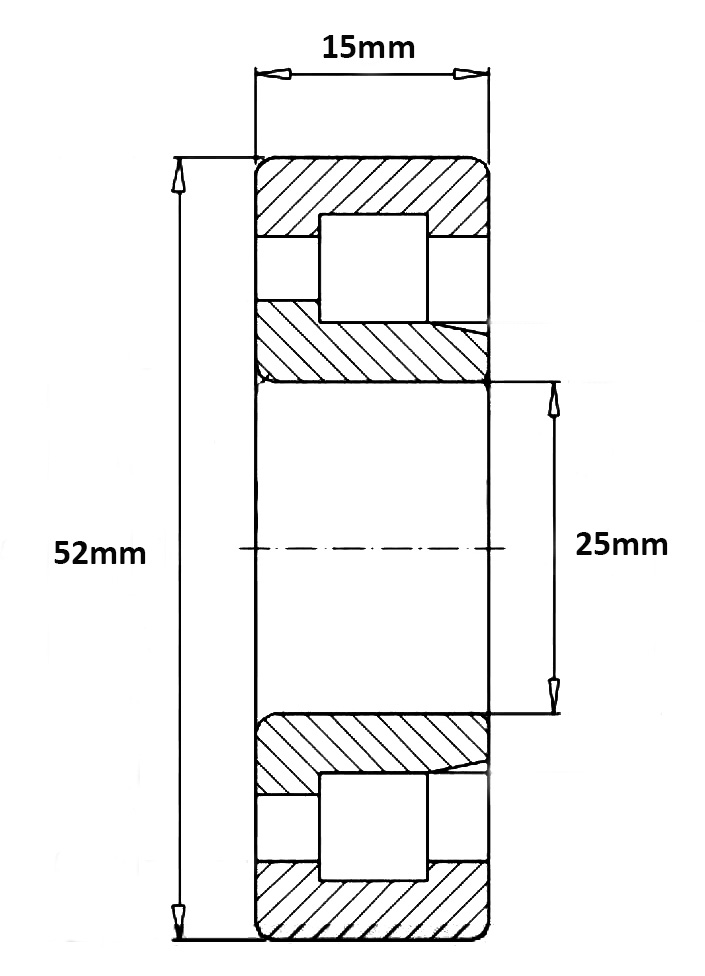

Dimension (mm)

Dimension of 25mm cylindrical roller bearing

Application

Cylindrical roller bearing application

Tips: Why use cylindrical roller bearings?

Cylindrical bearings resist damage from fatigue, shock and edge loads, and they tolerate misalignment better than rolling element bearings. Ultimately, customers will experience savings from lower maintenance costs and extended equipment life.
