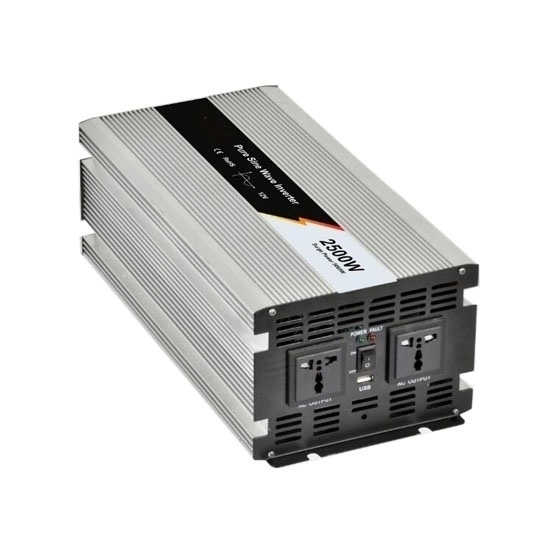

Favorable price 2500 watt pure sine wave power inverter, converting 12V/24V/48V DC energy to AC household power with 2 AC outlets and 1 USB port for powering devices such as cell phone, lights, tablets, TV, computer, fan, refrigerattor, washing mashine, microwave oven, power tool, etc., during vacation, on the road trip, work trip, in the car or even at power outage.
Features
- Provides 2500W continuous DC to AC power and 5000W surge power
- Pure sine wave inverter, capable of producing clean & stable electricity
- Soft-start technology
- USB charging port for powering your phone, laptop, etc.
- Aluminum alloy casing with good heat dissipation
- Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
- ON/OFF switch design, easy to use
- Intelligent cooling fan, long working life
Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.
Specification
Model |
ATO-PSWI-2500 |
Output Power |
2500 Watt |
Peak Power |
5000 Watt |
Phase |
1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G) |
Input Voltage* |
DC 12V |
DC 24V |
DC 48V |
DC 12V |
DC 24V |
DC 48V |
Input DC Voltage Range |
10-15.5V |
20-31V |
40-61V |
10-15.5V |
20-31V |
40-61V |
Output Voltage* |
100V AC or 110V AC or 120V AC ±5% |
220V AC or 230V AC or 240V AC ±5% |
No-load Current (less-than) |
1.3A |
0.8A |
0.6A |
1.3A |
0.8A |
0.6A |
Output Frequency* |
50Hz±0.5Hz or 60Hz±0.5Hz |
Output Wave |
Pure sine wave |
Waveform Distortion |
THD<3% (linear load) |
USB Port |
5V 1A |
Outlets Type |
2*Universal outlet and 4*USA outlet |
Max. Working Efficiency |
90.0% |
Low Voltage Alarm |
10.5V±0.5V |
21V±0.5V |
42V±1V |
10.5V±0.5V |
21V±0.5V |
42V±1V |
Low Voltage Shutdown |
10V±0.5V |
20V±0.5V |
40V±1.5V |
10V±0.5V |
20V±0.5V |
40V±1.5V |
Low Voltage Recovery |
13V±0.5V |
24V±0.5V |
48V±1V |
13V±0.5V |
24V±0.5V |
48V±1V |
Over Voltage Shutdown |
15.5V±0.5V |
31V±0.5V |
61V±1V |
15.5V±0.5V |
31V±0.5V |
61V±1V |
Over Voltage Recovery |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
Protection |
Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection |
Cooling Way |
Intelligent air cooling |
Remote Control* |
Wired control (2m) or Wireless control (30m) |
LCD Display |
Display input voltage, output voltage, frequency, power, waveform, battery capacity |
Operating Temperature |
﹣10℃~ +50℃ |
Storage Temperature |
﹣30℃~ +70℃ |
Humidity |
≤90%, non-condensing |
Dimensions (W*H*D) |
398*180*130mm |
Package Size (W*H*D) |
470*245*195mm |
Net./Gross Weight |
5.6kg/6.9kg |
Certificate |
CE, RoHS |
Warranty |
12 Months |
Details
Wiring Diagram
Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.
LCD Display (Optional)
The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.
Protection Functions & Applications
- Reverse Polarity Protection
Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
- Short Circuit Protection
Automatically self-protect when short circuit occurs – Red LED light ON.
- Low Voltage Protection
Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
- Over Voltage Protection
Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
- Over Temperature Protection
Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
- Overload Protection
Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.
Tips: What is a modified sine wave power inverter?
The modified sine wave power inverter emerged in recent years aiming at the shortcoming of squre wave power inverter. The output waveform has a time interval from the maximum value in the positive direction to the negative value in the negative direction. The use effect is improved. Modified sine wave power inverters generally use non-isolated coupling circuits.
Modified sine-wave power inverter not only saves cumbersome industrial frequency transformers, but also significantly increases the inverting efficiency by 90%. Modified sine-wave power inverter uses PWM to generate the modified sine-wave output. Due to the use of dedicated intelligent circuits and high power field effect transistors, the power loss of the system is greatly reduced. It also increased the soft start function to ensure the reliability of the inverter. If the demand for power quality is not very high, it can meet the needs of most of the power equipment. However, it still has 20% harmonic distortion. It will cause problems in the operation of precision equipment, and also cause high frequency interference to the communications equipment.
