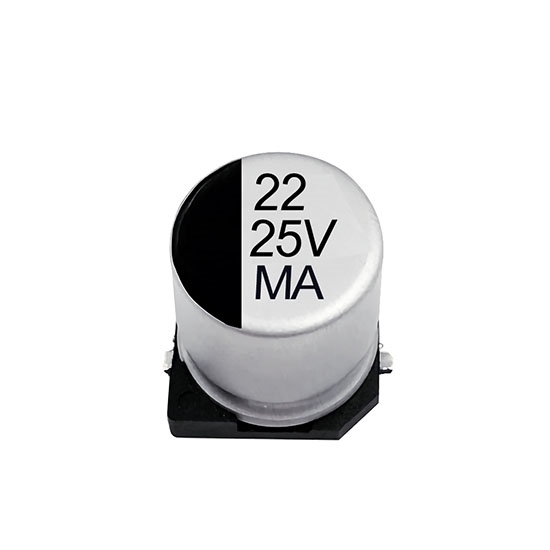

22μF 25V SMD Electrolytic Capacitor

$1.11

Economical price SMD aluminum electrolytic capacitor with 22μF capacity, 25 volt rated voltage. Reliable SMD aluminum electrolytic capacitori with 16% dissipation factor, -55~105℃ operating temperature. Surface mount electrolytic capacitor providing good electrical performance, wide application range and high reliability.

SKU: ATO-EC-HV220M025

This product has a minimum quantity of 500

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

22μF 25V SMD electrolytic capacitor featuring 2000h endurance, ±20% cap. tolerance. SMD non polarized capacitor can be applied for air conditioners, tape recorders, washing machines, communication machines and other household appliances.

Features

Endurance: 105℃ - 2000 hours
Low ESR and high ripple current
Vibration-proof (vP) version (up to 30g) available upon request
AEC-Q200 version available
High voltage, automotive 105°C type

Specification

Model		ATO-EC-HV220M025
Capacity		22㎌
Rated voltage		25V
Size		5*5.5mm
Installation type		Surface mount
Operating temperature		-55~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		16%
Low temperature characteristic at 120Hz (Z ratio max.)		3 (Z-25℃/Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	2000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Resistance to soldering heat (105℃)	∆C	Within ±10% of initial value
	tanδ	Less than specified value
	L_leak	Less than specified value

Dimension (mm)

Model	Dimension (mm)
ATO-EC-HV220M025	∅D	5
	L	5.5
	a	Max
	A	5.3
	B	5.3
	C	5.9
	W	0.5~0.8
	P±2	1.4

Tips: How to make a SMD Electrolytic Capacitor?

Cutting of aluminum foil.
This step is easy to understand. It is to cut a whole piece of aluminum foil into several small pieces to make it suitable for the needs of capacitor manufacturing.
Riveting of lead wires.
The pins outside the capacitor are not directly connected to the inside of the capacitor, but are connected to the inside of the capacitor through the inner lead. Therefore, in this step, we need to connect the inner leads of the anode and cathode with the outer leads of the capacitor by ultrasonic bonding. The outer lead is usually copper-plated iron wire or oxidized copper wire to reduce resistance, while the inner lead is directly connected with aluminum wire and aluminum foil. Everyone pays attention to these small steps, all of which require high precision machining.
Winding of electrolytic paper.
The electrolyte in the capacitor is not directly poured into the capacitor, and soaks the aluminum foil in a liquid state, but is attached to the aluminum foil layer by layer through the electrolytic paper that absorbs the electrolyte. Among them, the formula of the selected electrolytic paper is somewhat different from that of ordinary paper. It is microporous, and there should be no impurities on the surface of the paper, otherwise the composition and performance of the electrolyte will be affected. In this step, the electrolytic paper that does not adsorb the electrolyte is attached to the aluminum foil, and then rolled into the capacitor casing, so that the aluminum foil and the electrolytic paper form an interval similar to "101010".
