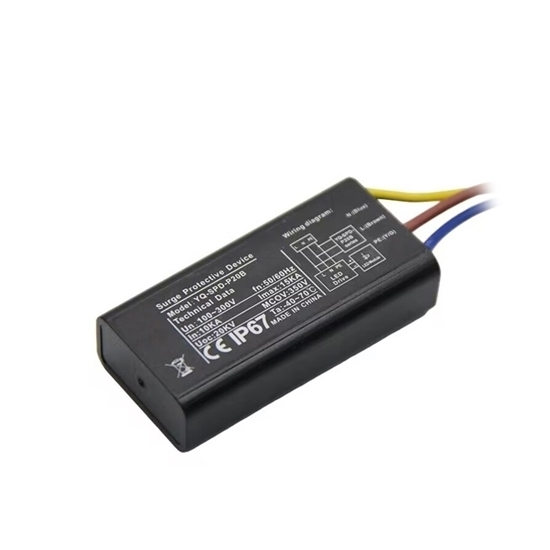

20kV LED Surge Protector

Buy a low cost surge protective device (SPD) for your LED lighting system online. With an IP67 rating, L-N, L-PE, N-PE, L, and N-PE modes and the option for parallel connection, the 20kV LED surge protector is easy to install on LED lamps or connected to the LED power supply.

Specifications

• Model: ATO-YQ-SPD-P20B
• Un: 100~300V
• IL(AC): 15A
• In: 10kA
• Imax: 15kA
• Uoc: 20kV
• MCOV: 350V
• Up: ≤1.6kV (L-N, L-G/PE, N-G/PE, LN-G/PE)
• Temperature Range: -40℃~+85℃
• Connection Form: Parallel Connection
• Protection Level: IP67

• Connecting Cable: Hose Wires (1.5-2.0mm²)
• Power Supply System: TN
• IEC 61643-11 Test Classification: Test Class II and Class III
• EN 61643-11 Test Classification: Type 2 and 3

Features

• This 20kV surge protector is specially designed for LED power supplies and can self-heal insurance and automatically disconnect for repair.
• It has built-in fast semiconductor protection, fast response speed, and adopts low capacitance inductor design for fast transmission performance.
• Recommended LED surge protector has small insertion loss, high transmission rate of 10~100m, long transmission performance, low resistance to reduce signal attenuation, and can protect itself when the voltage exceeds.

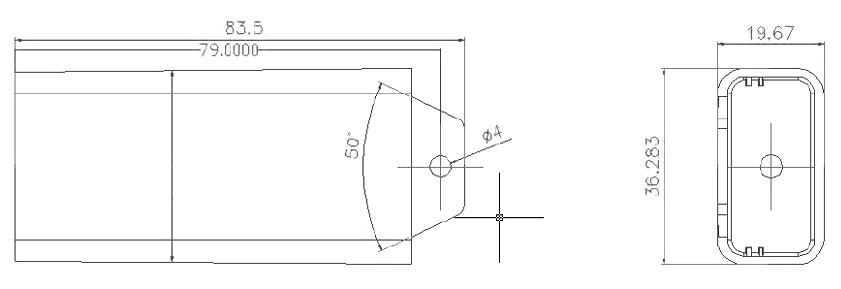

Dimension (Unit: mm)

Installation Guide

Notes:

1. The input cable is connected to the AC network. Improper installation will seriously damage the performance of the SPD.
2. The wire length can be customized according to customer requirements.
3. Please use one M3*6 self-tapping screw to fix the SPD.

Installation Diagram

Applications

This good surge protector is a transient overvoltage protection device specially used for outdoor LED lighting systems. It is mainly composed of a transient surge protection device varistor and a gas discharge tube. It can be installed in LED lamps or lamp posts the LED power driver is connected to provide reliable lightning surge protection, effectively improving the stability and service life of the lamp.

Tips: What is the "kV" of an LED surge protector?

The "kV" rating of an LED surge protector refers to the maximum voltage surge it can withstand or suppress. This rating is typically given in kilovolts (kV) and is an important specification when choosing a surge protector for LED lighting systems. Surge protectors for LED applications typically have kV ratings in the range of 2kV to 10kV or higher, depending on the specific model and the level of protection required.

A higher kV rating indicates that the surge protector can handle larger voltage surges without failing or allowing the surge to pass through to the connected LED devices. LED surge protectors are designed to absorb, divert, or limit voltage surges, ensuring that the LEDs receive a stable and safe power supply, which helps prevent damage and premature failure.

It's important to select a surge protector with an appropriate kV rating based on the potential surge risks in your electrical environment and the sensitivity of your LED lighting system to voltage spikes.
