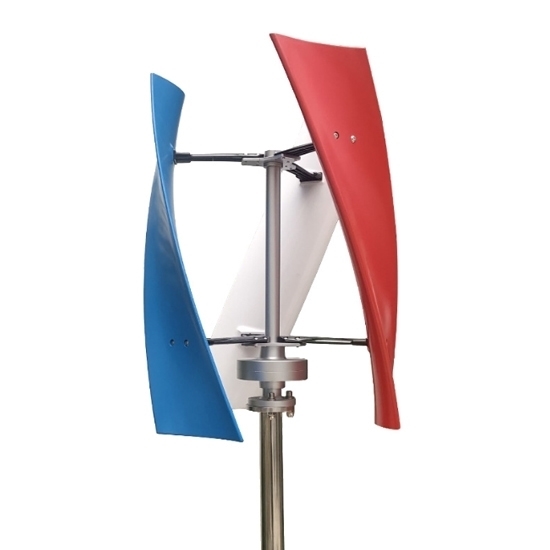

    200W Vertical Axis Wind Turbine, 12V/24V

    5 out of 5 based on 1 reviews | Write a review
    $765.89
    Buy a high efficiency 200W vertical axis wind turbine for home use. The turbine generator is rated at 12V or 24V, with a starting wind speed of 2m/s and a rated wind speed of 12m/s. The vertical axis design makes the turbine more compact and suitable for use in urban or residential environments.
    *
    SKU: ATO-VAWT-200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The 12V/24V vertical axis wind turbine has a maximum output of 200 watt. The vertical axis home wind turbine with its advanced blade design can operate efficiently at both low and high wind speeds, which is an ideal solution for areas with variable wind conditions.

    Specification

    Model ATO-X3-200
    Rated Power 200W
    Rated Voltage 12V/24V
    With Controller Yes
    Start Up Wind Speed 2m/s
    Rated Wind Speed 12m/s
    Survival Wind Speed 50m/s
    Wind Wheel Diameter/Height 0.55m/0.75m
    Number of Blades 3
    Blades Material Nylon
    Fuselage Material Aluminum alloy
    Magnetic Steel NdFeB
    Generator Type Three-phase AC permanent magnetically suspended generators
    Controller System Electromagnetic brakes
    Speed Regulation 360° Automatically Adjust Windard
    Installation Flange DN20
    Degree of protection IP54
    Gross Weight 9.5kg
    Top Net Weight 10.5kg
    Dimension 860*380*200mm


    Dimension
    (Unit: mm)

    Vertical axis wind turbine dimension

    Applications

    The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

    Vertical axis wind turbine application

    Tips: What is the power output of a vertical axis wind turbine

    The power output of a vertical axis wind turbine depends on several factors, including the size and design of the turbine, the wind speed and direction, and the efficiency of the generator. Generally, small-scale vertical axis wind turbines have a power output of a few hundred watts to a few kilowatts, while larger turbines can generate several megawatts of power. However, the actual power output can vary widely depending on the specific conditions and settings of the turbine.
