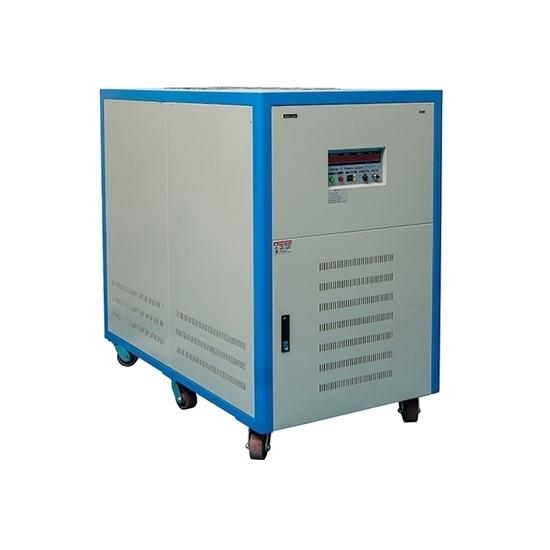

200kVA 3-Phase 380v 50Hz/460v 60Hz Frequency Converter

5 out of 5 based on 12 reviews | Write a review

$41,952.13

200 kVA three phase 480/460 volt to 380v/400v frequency converter, also can step-up 208v 220v to 400v 415v, output 50Hz/60Hz up to 400Hz adjustable, provide both voltage and frequency conversion for different power system.

Input Voltage (Three Phase) *

Wiring Type *

Wye (L1, L2, L3 + N, G)
Delta (L1, L2, L3 +G)

Output Frequency *

50Hz/60Hz
400Hz [+$599.00]

SKU: HZ-50-33200

Qty:

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

200 kVA three phase frequency converter, 220V/380V/400V/480V input and 0-520V output, easy converting 50Hz to 60Hz (vice versa), output pure sine wave for industrial appliance.

Specification:

Model	HZ-50-33200
Capacity	200 kVA
Dimension	15008601430 mm
Weight	850 kg
Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 554A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 277A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

How to Test a 9V Transformer Power Supply in a Frequency Converter?

This video shows you how to use a multimeter to test the IGBT in a frequency converter.

How to Use a Multimeter to Test the IGBT in a Frequency Converter?

This video shows you how to use a multimeter to test the IGBT in a frequency converter.

How to Check the Fuse of a Frequency Converter?

In this video, the steps on how to check the fuse of a frequency converter using a multimeter are shown.

Cabinet Frequency Converter Wiring and Testing

This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter. ATO provides a wide range of high quality single and three phase frequency converter available in rack-mounting and cabinet styles. Rated capacity ranges from 500VA/1kVA/2kVA to 200kVA. In addition to the typical frequency conversion between 50Hz and 60Hz, our converters also provide the maximum output frquency of 400Hz, tailored to various industrial application requirements.

Existing reviews of 200kVA 3-Phase 380v 50Hz/460v 60Hz Frequency Converter

We have issue with the converter

We have issue with the converter, are there any other possible causes for this faulty behavior, the capacitors seem to be ok.

From: Eilijah | Date: 14/11/2023
