200A Engine Starter Relay, 12V/24V DC

Write a review

$109.29

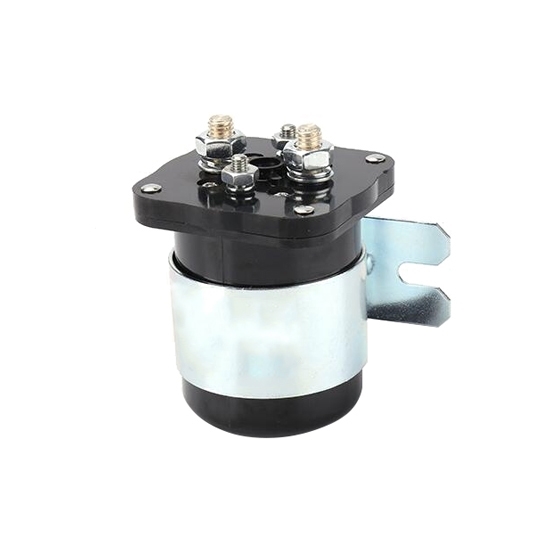

ATO engine starter relay is an electrical component in a vehicle's starting system that plays a crucial role in initiating the car engine's ignition process. This auto starter relay comes with 200A contact current, 12V DC and 24V DC coil rated voltage available, best for preventing excessive wear on the ignition switch and ensuring reliable engine starting.

Coil Rated Voltage *

SKU: ATO-ESR-200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The automotive starter relay's primary function is to act as a switch that controls the high current needed to activate the starter motor. Engine starter relays are typically located in the engine compartment or fuse box, where they are easily accessible for maintenance or replacement when necessary.

Specification

Model			ATO3050692-12/24VDC-1H
Coil Parameter	Rated Coil Voltage		12V DC	24V DC
	Coil Resistance (8W/10W)		18Ω	55Ω
	Operate Voltage (Max.)		6~8V DC	12~16.8V DC
	Release Voltage (Min.)		1.2~3.6V DC	2.4~7.2V DC
	Applicable Voltage (Max.)		15V DC	30V DC
Operation Condition	Insulation Resistance		100MΩ Min. (at 500V DC)
	Dielectric Strength	Between Contacts	500V AC (for one minute/sec)
		Between Coil and Contacts	750V AC (for one minute/sec)
	Shock Resistance	Operating Extremes	10g
		Damage Limits	20g
	Vibration Resistance		10~55Hz 1.5mm
	Release Time		7ms
	Operate Time		5ms
	Ambient Temperature		-30℃~+80℃
	Relative Humidity		40~85%
	Safety Standard		CCEE Certification
Contact Parameter	Contact Form		1H (1A)
	Contact Material		AgSnO₁₂
	Contact Rating (Resistance)		NO: 200A 14V DC
	Max. Switching Voltage		75V DC
	Max. Switching Current		200A
	Max. Switching Power		2800W
	Contact Resistance		100mΩ Max. at 6V DC 1A
	Electrical Life		100000 Operations (at 30 Operations/Minute)
	Mechanical Life		10000000 Operations (at 30 Operations/Minute)

Dimension (Unit: mm)

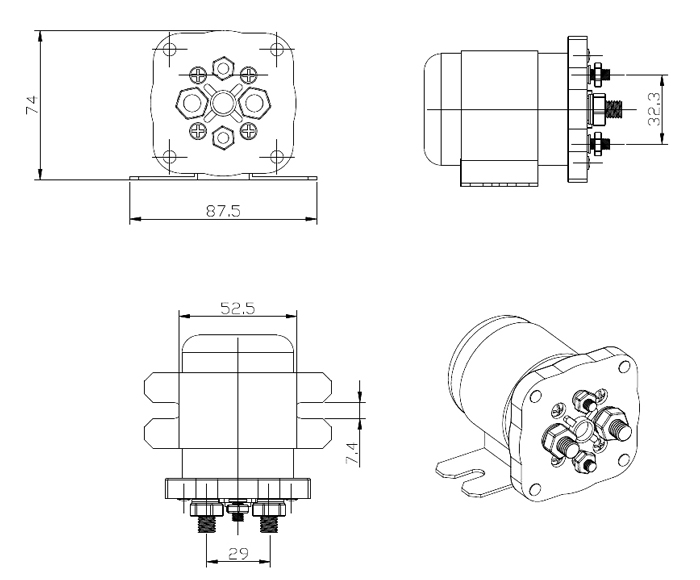

200A engine starter relay dimension

Tips: How to tell if there is a problem with the car starter relay or the starter motor?

To tell if there is a problem with the auto starter relay or the starter motor, you can refer to the following steps:

Listen to the sound: When starting the car, if you hear a "click" sound but the engine does not turn, there may be a problem with the automotive starter relay. If there is no sound or only a slight clicking sound, it may be a problem with the starter motor.
Check the battery: Make sure the battery is fully charged. If the battery is low, it may cause both the engine starter relay and the starter motor to not work properly.
Voltage test: Use a multimeter to test the voltage of the starter relay and the starter motor. If the starter relay receives voltage but the starter motor does not turn, the problem may be in the starter motor. If the starter relay does not receive voltage, there may be a problem with the relay itself or the circuit.
Check the connection wires: Check whether the connection wires between the battery, the starter relay, and the starter motor are loose or corroded.
Replace the relay: Try replacing the starter relay to see if the problem is solved. If the problem persists after the replacement, it may be a problem with the starter motor.
