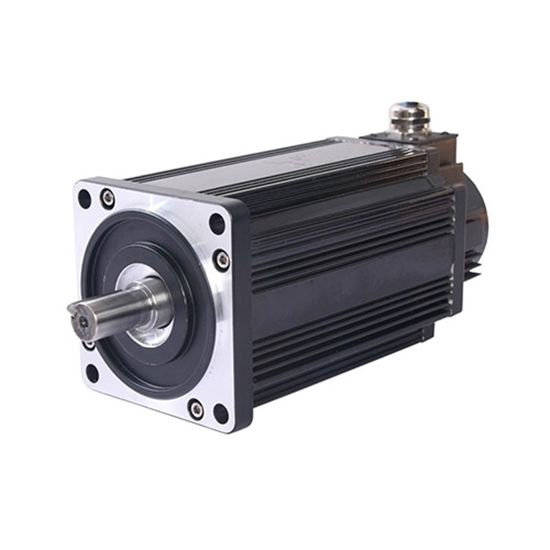

2000W 48V DC Servo Motor, 7.5 Nm, 2500 rpm

5 out of 5 based on 2 reviews | Write a review

$786.58

2kW brushless DC servo motor with 2500rpm rated speed and 7.5 Nm holding torque, works at 48V DC voltage, equiped with a 2500 PPR incremental encoder, IP55 for protection, is designed to deliver good performance and efficiency at an economical price.

With Brake *

SKU: ATO-110AS0420-25

Qty:

Overview

High precision 48 volt DC servo motor provides a rated power of 2000W, speed of 2500 rpm, maximum speed up to 2700 rpm, rated torque of 7.5 Nm and peak torque up to 26 Nm. Strong servo motor widely used in industrial automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

Basic Specifications

Model: ATO-110AS0420-25
Rated Power: 2000W
Rated Voltage: 48V DC
Rated Current: 55 A
Rated Torque: 7.5 Nm
Peak Torque: 26 Nm
Rated Speed: 2500 rpm
No-load Speed: 2800 rpm
Working Efficiency: 85%
Flange Size: 110mm
Weight: 10 kg

Technical Parameters

Incremental Encoder Line: 2500 PPR
Rotary Inertia: 1070 Kg.m²x10^-6
Line Resistance: 0.08 Ω
Armature Inductance: 120 μH
Torque Constant: 0.14 Nm/A
Brake Apparatus Voltage: 24V DC, brake release when powered
Motor Lead Length: 1 meter
Back EMF: 27.9 vkr/min
Protection Grade: IP55
Insulation Class: Class F
Certification: CE, ISO

Features

2000W DC servo motor with IP55 protection grade and F class insulation structure
Optimized winding end structure, minimized copper loss and iron loss, small size, light weight, low temperature rise and high efficiency (85%)
Super coercivity, ATO DC brushless servo motors using NdFe35 permanent magnet material, strong anti-demagnetization ability, stable motor performance
Low noise, low vibration, low moment of inertia
High torque, fast dynamic response, wide speed range, strong overload capacity (4 times)

Dimension (Unit=mm)

2 kw 48v dc servo motor size

Wiring Definition

DC servo motors wiring definition

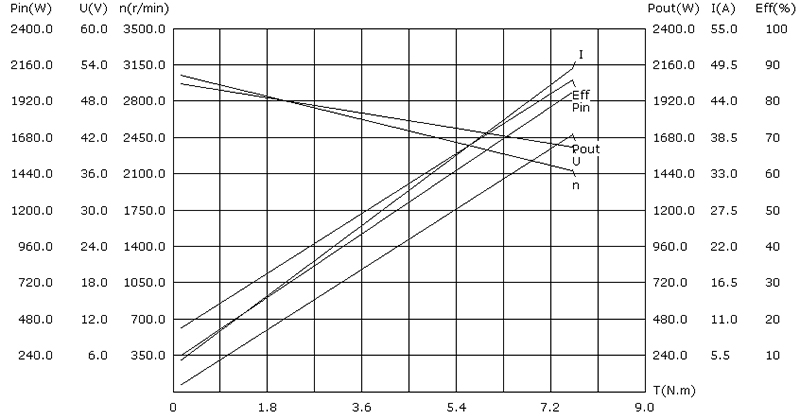

Speed-Torque Curve

2000w dc servo motor speed torque curve

At no-load point: 7.61 (N.m)
Speed: 2133.2 (r/min)
Current: 48.919 (A)

At max. efficiency point: 85.8 (%)
Torque: 7.61 (N.m)
Speed: 2133.2 (r/min)
Current: 48.919 (A)
Output power: 1700.04 (W)

At max. torque point: 7.61 (N.m)
Speed: 2133.2 (r/min)
Current: 48.919 (A)
Output power: 1700.04 (W)

At max. output power point: 1700.04 (W)
Torque: 7.61 (N.m)
Speed: 2133.2 (r/min)
Current: 48.919 (A)

Details

Tips: Servo motor application case

Marketing of stainless steel servo motors can help producers of the food industry improve design of hygiene machine. Stainless steel servo motor can reduce extra hardware and improve cleanliness, reliability and performance of machines at the same time. The motors adopt smooth and round design which is easy for cleaning, since meat and fluid will not easily gather in surface. The motor is made of grade-300 stainless steel and it will have special treatment after finishing components to remove impurities and further improve corrosive protection performance. In addition, cable outlets of motors are sealed when they leave factory, which can improve product reliability to the utmost extent.

For more information, please go to the blog Servo Motor for Food Packing Machine.

Existing reviews of 2000W 48V DC Servo Motor, 7.5 Nm, 2500 rpm

Can you provide a user manual for servo motor

We have recently purchased this servo motor from ATO, please can you provide a user manual and any other relevant information related to its use?

From: Mia | Date: 29/05/2022

Was this review helpful? Yes No (0/0)

ATO Responded

Sorry, we can only provide motor drawings, its user manual is not available. Please check the attached drawing.

We want to know more about servo motor

We are needing DC servo motor controller, do you prode? How can we control motor speed via external signal? Can we control 2 motors via 1 controller? We are open to the learn more about your product.

From: Voracious | Date: 16/12/2021

Was this review helpful? Yes No (0/0)

ATO Responded

1. Our controllers are available in position mode and speed mode.
You can control the motor position or speed via RS232 or CAN open and support PWM, 0-5V signals as well.
2. If you wants to control 2 motors, your are needing to buy 2 controllers because the controller only supports 1 motor.
See attached controller's user manual.
