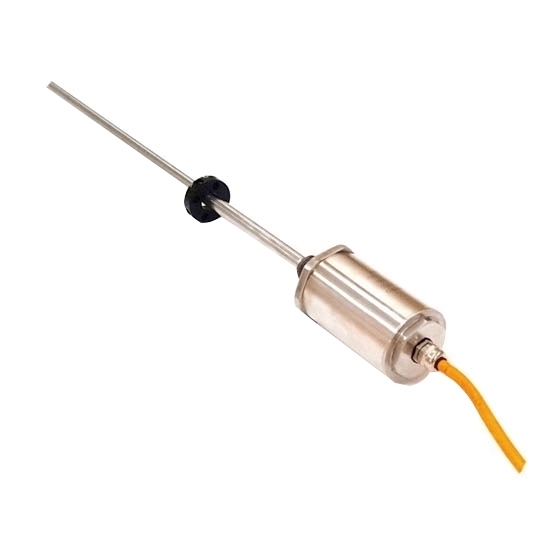

    2000mm Magnetostrictive Linear Displacement Sensor

    $1,316.15
    Magnetostrictive displacement transducer for measuring the displacement of machine, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-2000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Non contact linear displacement sensor with measuring range 2000mm is used for measuring the displacement of machine, such as cutting machine. Magnetostrictive displacement sensors have effective travel 50mm~15000mm, can be used in most industrial automation systems.

    Specification:

    Basics Model ATO-MSD-2000
    Measuring range 0~2000 mm
    Shipping weight 10.5 kg
    Length 2199.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation
    Tips: Magnetostrictive sensor for dam cracks detection
    According to architectonic related principle, dam structure is mainly composed of dam column combining with cement wall. The dam column pile is very deep, cement wall is relatively shallow. As time goes on, there will be cracks between dam column and cement wall, it may require detection. In crack detecting application, magnetostrictive sensor is mounted in the channel of dam (the channel layers would be different while the dam height is different). A channel could be considered according to actual inside condition, need to mount at multi-points and detect. For actual on-site installation, magnet ring should be fixed on cement wall, and magnetostrictive sensor should be fixed on dam column. When cracks changes, magnet ring position will change along with the cement wall position changing, sensor will transmit the signal of new position generating by magnet ring to control room.
    Since displacement on dam detection is very small, and the change is a long term and slow changing process. Due to its unique principle, magnetostrictive displacement sensor could satisfy the measuring requirement in accuracy and stability. Therefore, it's widely used in dam cracks detection.
