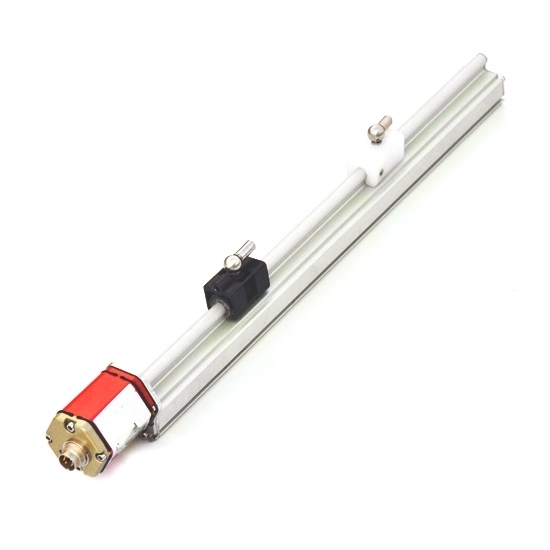

    2000mm Magnetostrictive Displacement Sensor for impact ram

    $1,316.15
    Aluminum alloy rail type magnetostrictive sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for impact ram and other CNC machinery worked in large vibration.
    SKU: ATO-MSR-B2000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive linear displacement sensor with measuring range 2000mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive measurement sensors have effective travel 50mm~35000mm, can be widely used in all kinds of CNC machinery that always working in large vibration.

    Specification:

    Basics Model ATO-MSR-B2000
    Measuring range 0~2000 mm
    Shipping weight 10.5 kg
    Length 2173.1 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Temperature excursion ≤0.001%FS
    Operating voltage 24V DC
    Current drain 5~16mA
    Vibration coefficient 5g/10-2000Hz/IEC standards IEC standards 68-2-6
    Operating temperature -40℃~85℃
    Load characteristic Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
    Output 0~5V; 0~10V; 0~20mA; 4~20mA
    Installation method Fixed clip, with specific screw M5X20
    Magnet type Slider magnet, levitating magnet
    Protection Class IP65

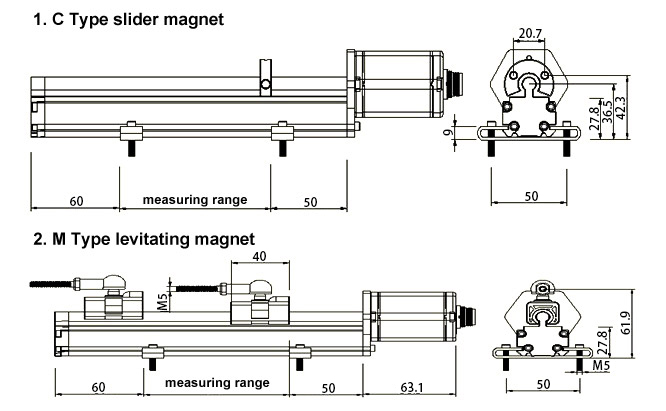

    Dimensional drawing (unit: mm):
    magnetostrictive sensor rail type dimensional drawing-b

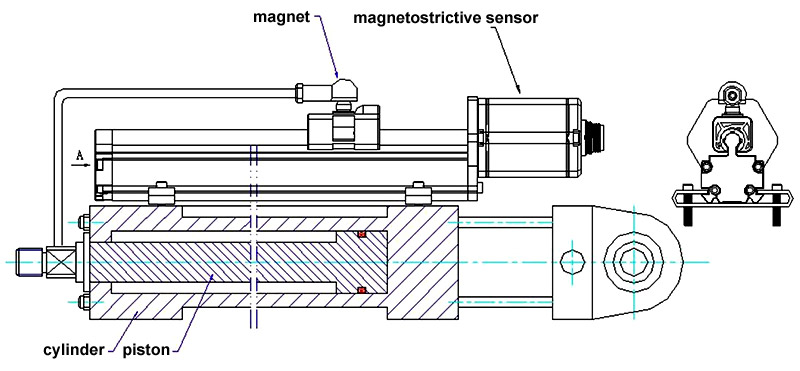

    Installation diagram:
    magnetostrictive sensor rail type installation drawing
    Tips: Magnetostrictive linear displacement sensor apply in rolling machine
    Rolling machine drives upper roller through vertical lifting movement of oil cylinder. With the aid of upper roller pressing down and rotating movement of lower roller, make metal sheet has multi-pass continuous bending, and generates permanent molding deformation, and roll to required cylinder and taper cylinder. But pressing down position is big or small should be fed up to PLC through a linear displacement sensor, then to achieve oil cylinder control. This linear displacement sensor is the key for processing accuracy of plate material. Measurement type and appearance of magnetostrictive sensor decide it's more suitable for rolling machine performance improving.
