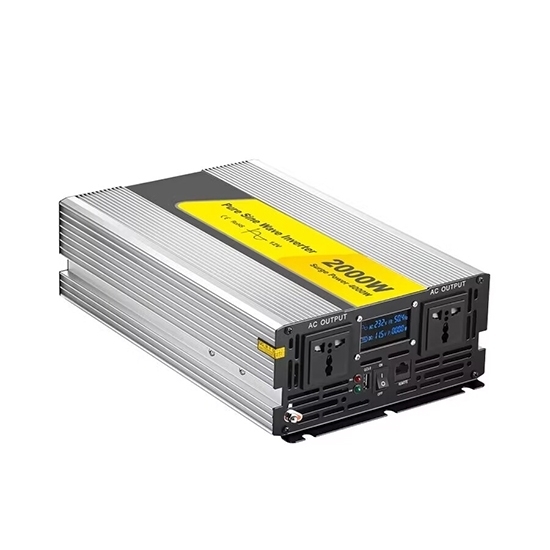

2000W/4000W pure sine wave power inverter converts DC battery power to AC household power, best solution to charge electronic devices like cellphone, laptop, tablet, fan, projector, camera, TV set, microwave, etc., on road trip, work trip, RV travel or any where AC power is needed.
Features
- 2000 Watt continuous power and 4000 Watt peak power
- Pure sine wave inverter, capable of producing clean & stable electricity
- Soft-start technology
- USB charging port for powering your phone, laptop, etc.
- Aluminum alloy casing with good heat dissipation
- Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
- ON/OFF switch design, easy to use
- Intelligent cooling fan, long working life
Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.
Specification
Model |
ATO-PSWI-2000 |
Output Power |
2000 Watt |
Peak Power |
4000 Watt |
Phase |
1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G) |
Input Voltage* |
DC 12V |
DC 24V |
DC 48V |
DC 12V |
DC 24V |
DC 48V |
Input DC Voltage Range |
10-15.5V |
20-31V |
40-61V |
10-15.5V |
20-31V |
40-61V |
Output Voltage* |
100V AC or 110V AC or 120V AC ±5% |
220V AC or 230V AC or 240V AC ±5% |
No-load Current (less-than) |
1.1A |
0.7A |
0.4A |
1.1A |
0.7A |
0.4A |
Output Frequency* |
50Hz±0.5Hz or 60Hz±0.5Hz |
Output Wave |
Pure sine wave |
Waveform Distortion |
THD<3% (linear load) |
USB Port |
5V 1A |
Outlets Type |
2*Universal outlet and 4*USA outlet |
Max. Working Efficiency |
90.0% |
Low Voltage Alarm |
10.5V±0.5V |
21V±0.5V |
42V±1V |
10.5V±0.5V |
21V±0.5V |
42V±1V |
Low Voltage Shutdown |
10V±0.5V |
20V±0.5V |
40V±1.5V |
10V±0.5V |
20V±0.5V |
40V±1.5V |
Low Voltage Recovery |
13V±0.5V |
24V±0.5V |
48V±1V |
13V±0.5V |
24V±0.5V |
48V±1V |
Over Voltage Shutdown |
15.5V±0.5V |
31V±0.5V |
61V±1V |
15.5V±0.5V |
31V±0.5V |
61V±1V |
Over Voltage Recovery |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
Protection |
Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection |
Cooling Way |
Intelligent air cooling |
Remote Control* |
Wired control (2m) or Wireless control (30m) |
LCD Display* |
Display input voltage, output voltage, frequency, power, waveform, battery capacity |
Operating Temperature |
﹣10℃~ +50℃ |
Storage Temperature |
﹣30℃~ +70℃ |
Humidity |
≤90%, non-condensing |
Dimensions (W*H*D) |
397*180*78mm |
Package Size (W*H*D) |
500*240*150mm |
Net./Gross Weight |
4kg/4.7kg |
Certificate |
CE, RoHS |
Warranty |
12 Months |
Details
Wiring Diagram
Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.
LCD Display (Optional)
The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.
Protection Functions & Applications
- Reverse Polarity Protection
Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
- Short Circuit Protection
Automatically self-protect when short circuit occurs – Red LED light ON.
- Low Voltage Protection
Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
- Over Voltage Protection
Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
- Over Temperature Protection
Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
- Overload Protection
Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.
Tips: Differences between pure sine wave inverter and modified sine wave inverter
The waveforms of the inverter are mainly divided into two categories, one is a sine wave inverter (ie, a pure sine wave inverter), and the other is a square wave inverter.
The sine wave inverter outputs sine wave AC power that is as good as the grid we use every day, because it does not have electromagnetic pollution in the grid. But the square wave inverter outputs a square wave alternating current with poor quality. And its positive maximum to negative maximum value generates almost at the same time, thus causing severe instability to the load and the inverter itself. At the same time, its load capacity is poor, only 40-60% of the rated load, and it cannot carry inductive loads. If the load is too large, the third harmonic component contained in the square-wave current will increase the capacitive current flowing into the load. In severe cases, the load filter capacitor will be damaged.
In view of the above shortcomings, a modified sine wave inverter emerged in recent years. The output waveform has a time interval from the maximum value in the positive direction to the negative value in the negative direction. The use effect is improved. But the waveform of the modified sine wave is still composed of broken lines, which still belongs to the square wave category. The continuity is not good, and there is a dead zone.
Modified sine wave inverters generally use non-isolated coupling circuits, while pure sine wave inverters adopt isolated coupling circuit designs. The price is also very different. Pure sine wave inverter is a little expensive than modified sine wave inverters.
