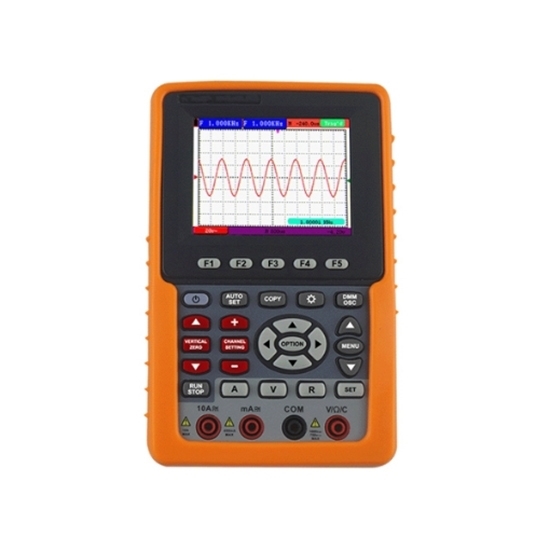

    20 MHz Handheld Oscilloscope, 500 MSa/s, Single Channel

    5 out of 5 based on 1 reviews | Write a review
    $458.89
    Single channel handheld oscilloscope with reasonable price for sale. The digital oscilloscope with 20 MHz bandwidth, 500 MSa/s sampling rate, is an instrument used to measure the shape of alternating current or pulse current waves. The 20 MHz handheld oscilloscope features an auto-scale function, USB data transmission and waveform record and replay.
    SKU: ATO-HO-20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

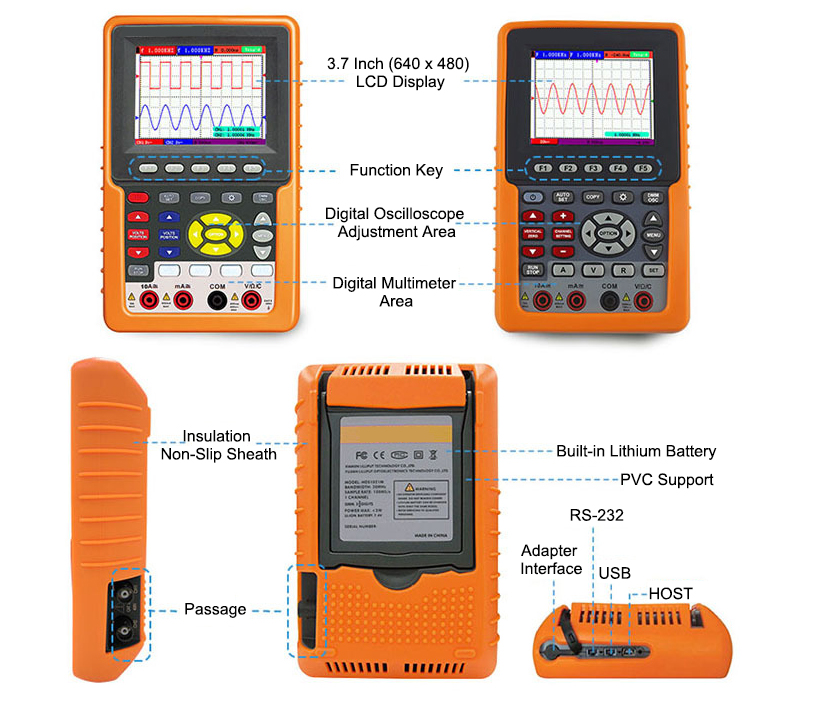

    The 20 MHz handheld digital oscilloscope with 500 MSa/s sampling rate, Auto, Normal, and Single three trigger modes, USB Type-C interface supports not only power bank power supply, but also adapter charging and top computer connection. Visualize electrical waveforms to test and debug circuits with the 1-channel handheld digital oscilloscope from ATO.

    Specification

    Performance Characteristics

    Model ATO-HDS1021M-N
    Bandwidth 20 MHz
    Channel Single channel
    Sample rate 500MSa/s
    Horizontal Scale (s/div) 5ns/div~100s/div, step by 1~2.5~5
    Record length 24K points
    Display 3.7" color TFT display (640 * 480 pixels)
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Input impedance 1 MΩ±2%, in parallel with 18 pF±5 pF
    Probe attenuation 1X,10X,100X,1000X
    Max. input voltage 400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
    Bandwidth limit(typical) 20MHz / Full bandwidth
    Sampling rate range 5ns/div ~ 500s/div, step by 1 – 2 - 5
    DC Accuracy (average) average >16: ±(5% reading + 0.05div) for △V
    Vertical Sensitivity 5mV/div~5V/div (at input)
    Rise time (at input, Typical) ≤ 17.5ns
    Trigger type Edge and Video
    Trigger model Auto, Normal, Single
    Trigger level range ±6 div from the screen center
    Automatic measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Communication interface USB Type-C
    Acquisition Mode Sample, Peak Detect, and Average
    Interpolation sin (x) / x
    Vertical Resolution (A/D) 8 bits
    Waveform Storage 4 waveforms
    Communication Interface Mini-USB,mini-RS232
    Power Supply 100V-240V AC, 50/60Hz

    Digital Multimeter Specification

    Full-Scale Reading 3 3/4 digits (max 4000-count)
    Diode 0V-1.5V
    Input Impedance 10 MΩ
    On/ Off Test < 50 (± 30) beeping
    Voltage VDC: 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input: DC 1000V
    VAC: 4V, 40V, 400V: ±(1% ± 3 digits), 750V: ±(2% ± 3 digits); Frequency: 40Hz - 400Hz;
    Max input: AC 750V (virtual value)
    Current DC: 40mA, 400mA : ±(1.5% ± 1 digit), 10A: ±(3% ± 3 digits)
    AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
    Impedance 400Ω: ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ: ±(1% ± 1 digit), 40MΩ: ±(1.5% ± 3 digits)
    Capacitance 51.2nF - 100uF: ±(3% ± 3 digits)

    Accessories

    • Power cord
    • CD rom
    • USB cable
    • Probe
    • Probe Adjust
    • Multimeter lead
    • Adapter
    • User manual
    • 5V, 1KHz Output
    • Capacitance Ext Module
    • Soft Bag
    • Metal Case (optional)

    Dimension (mm)

    Handheld oscilloscope dimension

    Tips: How to choose a handheld oscilloscope?

    Simply put, an oscilloscope is an electronic device that is widely used in the field of measurement. This oscilloscope can be used to measure electrical wave signals that cannot be seen by the human eye, and then transform these vapors into visible images that are presented on the instrumentation so that people can take the next step in their research with the help of images. Oscilloscope in the work, the use of something called an electron beam hit the screen, the screen because there is fluorescent material, so it will produce a lot of fine points, which people can see with their eyes. People use the oscilloscope can detect various signals in time back a change in characteristics, through the drawing of a good waveform line to study.

    Any jump edge in the signal captured by the portable oscilloscope will act as a trigger event and start a new waveform acquisition process, which is especially useful when acquiring an eye diagram from a digital data stream, or when used with a signal that occurs only once.

    Existing reviews of 20 MHz Handheld Oscilloscope, 500 MSa/s, Single Channel
    It is very suitable for me
    This Handheld Oscilloscope is compact in size but powerful in functionality. The high sampling rate of 500 MSa/s ensures the accuracy of signal capture, especially when processing low-frequency signals. Although the single channel design has some limitations, it is sufficient for most daily measurement tasks and is very suitable for me to use in the laboratory.
