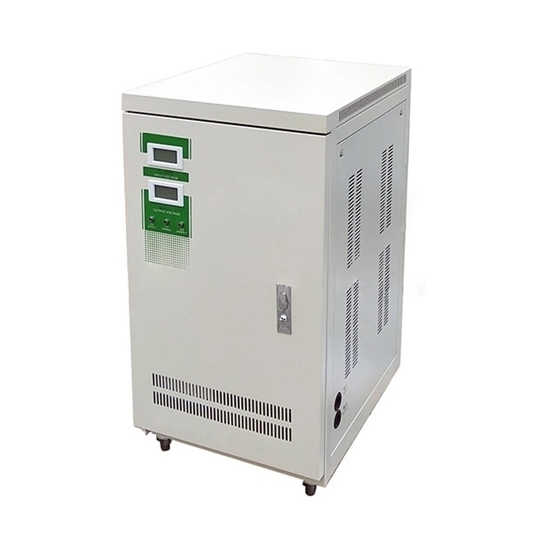

20 kVA Single Phase Automatic Voltage Stabilizer

5 out of 5 based on 2 reviews | Write a review

$2,038.15

Competitive price automatic voltage stabilizer is 20kVA capacity, single phase, 190-250V wide input voltage range, 220V±3% high accuracy of output voltage, version of 95-125V input is available, can be widely used in most situations where the voltage stabilization is required.

Phase *

1-phase (L, N, G)
split-phase (L1, L2+G)

Output Voltage *

Output Voltage (AC) *

SKU: ATO-AVS-1P20K

Qty:

30-day Returns

Delivery date: 10-20 days

Overview

20 kVA Single Phase Automatic Voltage Stabilizer with high efficiency and 110V±3%/ 220V±3% output voltage stability, 95-125V/ 190-250V wide input voltage range full automatic intelligent protection, is ideal for domestic or industrial purposes.

Features

Wide input voltage: 95-125V/ 190-250V AC or customize
The high accuracy of the output voltage: 110V±3%/ 220V±3%, other voltages can be customized
High technology: Programmed control computerized
Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
Fashion design: LCD display that can show all protection functions i.e. input voltage, output voltage, temperature, loading, fault indication, and so on.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	ATO-TND/JSW-20kVA
Capacity	20 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Overvoltage	<246±4V
Temperature Rise	<60°C
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<95%
Wave Form Distortion	No additional waveform distortion
Load Power Factor	0.8
Efficiency	≥90%
Display	LCD
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE
Warranty Period	12 months
Weight	78 Kg
Size	410330650mm
Note: The provided 20 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Details

20 KVA Single Phase Automatic Voltage Stabilizer Details

3 key tips to choose a right single-phase voltage stabilizer

Choosing a single-phase voltage stabilizer requires understanding your specific needs and the technical parameters involved.

1. Determine Load Capacity
The first step is to calculate the total power consumption of all the devices you plan to connect to the voltage stabilizer. This is usually measured in watts (W) or kilovolt-amperes (kVA). Choose a voltage stabilizer with a capacity that is 20-25% higher than your calculated load to ensure reliable performance during voltage fluctuations.

2. Input Voltage Range
Check the voltage fluctuation levels in your area. Single-phase stabilizers are designed to operate within specific input voltage ranges. Select a model that covers the range of voltage fluctuations in your region to ensure it can regulate the voltage effectively.

3. Output Voltage Regulation
Voltage stabilizers maintain a stable output voltage, usually 220V or 230V in most countries. Ensure that the stabilizer you choose provides accurate output voltage regulation within a specified tolerance (±5% or ±10% is typical). This ensures your devices receive the correct voltage, protecting them from damage.

Existing reviews of 20 kVA Single Phase Automatic Voltage Stabilizer

Know more about the 1-phase, 20kVA voltage stabilizer

For your 1-phase, 20kVA voltage stabilizer, we inquire about the specs listed on your website:
1. It says “adjust time < 1 seconds (against 10% voltage deviation). What is meant by this?
2. It says “temperature rise < 60 degrees C”. What is meant by this? Is this how much hotter the machine gets when it is turned on?
3. It says “protection overvoltage < 246 /- 4 V”. What is meant by this? Is this the level at which the machine shuts down and stops working to protect itself?

From: Alan | Date: 01/11/2020

Was this review helpful? Yes No (0/0)

ATO Responded

1. "adjust time < 1 seconds (against 10% voltage deviation)", it mean that the stabilizer adjustment time <1 second, when the input voltage change rate is within 10%.
2. Yes, when the machine is working, "temperature rise <60 degrees C".
3. Yes, it's the level at over voltage in which the machine will switch to the grid, but it will not stop working.

Great automatic voltage stabilizer, worked as my expected!

Great automatic voltage stabilizer, worked as my expected! We don't normally write reviews but this item and ATO website were both great to work with. They answered all our questions in a short time. We would recommend this item and the website to anyone who wants a voltage stabilizer that is limited.

From: Dodge DeBoulet | Date: 24/10/2019

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 20 kVA Single Phase Automatic Voltage Stabilizer

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Customers who bought this item also bought

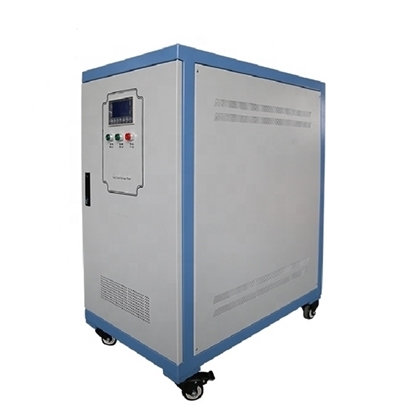

30 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

$4,963.05

SKU: ATO-AVS-3P30K

Energy saving 30 kVA full automatic voltage stabilizer is designed for industrial machine requirements with servo motor. Default three phase 304V-456V AC input (+/- 20% tolerance) and 380V output, input/ output voltage is customizable as you need. When the supply voltage of the distribution network fluctuates or the load changes, the voltage regulator will stabilize the output voltage automatically.

20 kVA Single Phase Automatic Voltage Stabilizer

12 kVA Single Phase Automatic Voltage Stabilizer

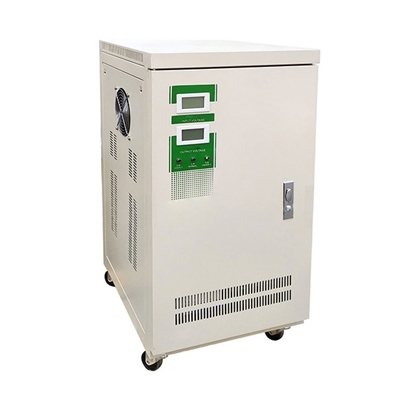

15 kVA Single Phase Automatic Voltage Stabilizer
