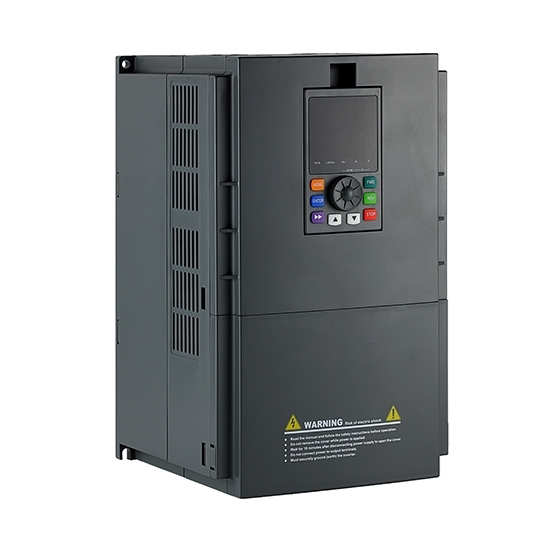

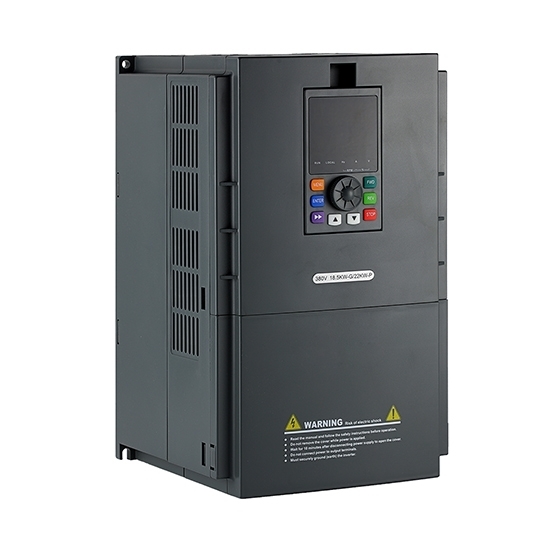

20 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

5 out of 5 based on 2 reviews | Write a review

$1,854.63

Low cost 20 hp VFD for sale, with 32 amps, single phase 220 volt -240 volt input, 380 volt three phase output. This 15 kW variable frequency drive built-in RS485 interface, controlled by V/F, vector control mode.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Output Voltage (Three phase) *

SKU: GK3000-CS0150G

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

20 hp (15 kW) variable frequency drive at fair price, converts 1-phase 220V to 3-phase 380V for AC motor speed control, to realize high precision and wide speed regulating range and high performance.

Specification:

Basics	Model	GK3000-CS0150G
	Capacity	20 hp (15 kW)
	Shipping weight	22 kg
	Dimension	330200200 mm
	Installation size	316*188 mm
I/O Feature	Rated current	32 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage (Optional)	3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Universal VFD vs. single phase to three phase VFD

Universal VFD is a power control device that applies the principle of frequency conversion technology and microelectronics technology to control AC motor by changing the frequency of motor working power supply, converting AC power with fixed voltage and frequency into AC power with variable voltage or frequency. The process is to convert the frequency AC power into DC power through rectifier, and then convert the DC power into AC power with controllable frequency and voltage to supply the motor.

The single phase to three phase variable frequency drive is based on the ordinary VFD, which converts the 220V AC power into DC power through the rectifier (voltage doubling rectifier), and then converts the DC power into three-phase 380V AC power with controllable frequency and voltage to supply the motor. This method does not step up the voltage through the transformer, but only through the rectifier boost circuit, which greatly reduces the size and weight of the VFD, and the cost is lower compared to the boost device.

In this video, ATO will show you the vfd basic troubleshooting guide.

4-20mA speed control on VFD

4-20mA is as common in analog control systems as 0~10V, and ATO GK3000 series VFDs are also perfectly compatible.

VFD analog input 0-10V frequency control (VI port)

ATO GK3000 VFD uses external voltage analog to control the frequency so as to achieve the purpose of motor speed regulation.

Control VFD with potentiometer & button (VI port)

ATO GK3000 vector VFD supports control of synchronous motors, and supports external potentiometer and button control.

Forward and reverse VFD button control

This video is for ATO GK3000 upgrade version VFD 1-phase to 3-phase & 3-phase VFD (3-wire control/external terminal control mode).
