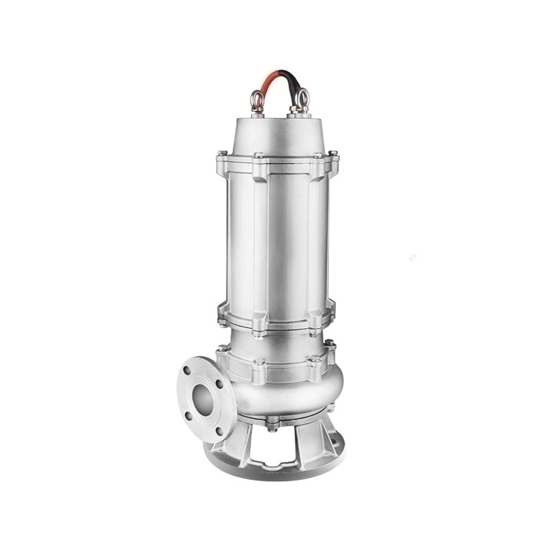

20 HP Stainless Steel Submersible Sewage Pump

20 hp (15kW) sewage pump is designed to efficiently pump and convey sewage and wastewater in a variety of applications. 304/316 stainless steel submersible pump works at 220V/380V voltage, commonly used in sewage systems, wastewater treatment plants and industrial processes.

Specifications

• Model: ATO-100WQP100-25-15
• Connection Method: Flanged
• Material: 304/316 Stainless Steel
• Rated Flow: 100m³/h
• Rated Lift: 25m
• Power: 15kW (20 hp)
• Caliber: 100mm
• Voltage: 3 Phase 220V/380V (Contact us for customized voltage)
• Rotation Speed: 1450r/min
• Size: 52x40x106cm
• Weight: 120kg

Notes

• When using a stainless steel sewage pump, the medium temperature should not exceed 50°C (ordinary motor), not exceed 100°C (high-temperature motor), the density should be 1.0-1.3kg/m³, and the PH index should be between 0-14.
• The motor part shall not expose more than 1/2 of the liquid surface.
• Stainless steel submersible sewage pumps must be used within the operating lift range to ensure that the motor is not overloaded.

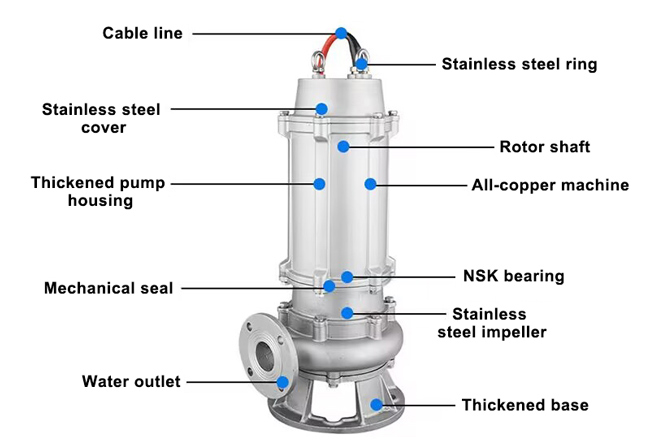

Details

Applications

Tips: What is a submersible sewage pump?

A submersible sewage pump is a specialized pump designed for the efficient and reliable handling of raw sewage and wastewater. Unlike conventional pumps that are installed above ground, submersible sewage pumps are designed to be submerged directly into the sewage or wastewater they are intended to pump. This submersion allows for more effective and direct handling of the often corrosive and abrasive nature of sewage.

The pump consists of a motor and an impeller housed in a waterproof casing. The motor is hermetically sealed to prevent water entry, allowing the pump to operate while submerged. The impeller, driven by the motor, spins rapidly, creating a flow that transports sewage and solids from the inlet to the discharge.

These pumps are crucial components in municipal wastewater systems, industrial applications, and residential sewage systems. They are capable of handling a variety of solid waste sizes and are designed to withstand the harsh conditions associated with sewage, providing an efficient and durable solution for the transportation of wastewater to treatment facilities or disposal points. Submersible sewage pumps are available in various sizes and materials to suit different applications and environmental conditions.
