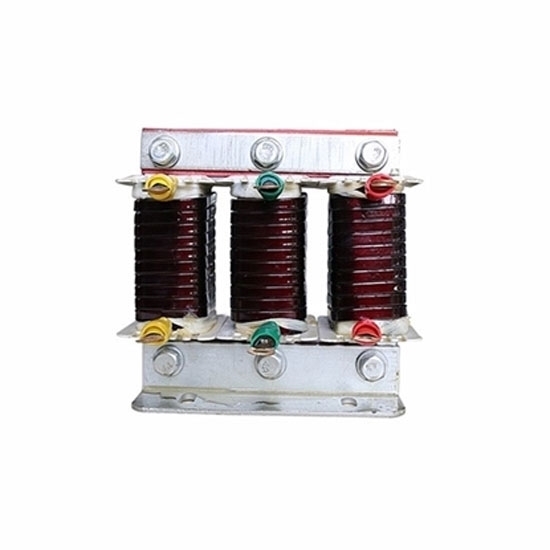

    20 hp (15 kW) AC Line Reactor, 3 Phase Output

    $332.25
    The 20 hp 3 phase AC output line reactor is of good quality, it can be used for 220 to 480 voltage, materials can select copper or aluminum, working frequency is 50/60hz, 40 amperes current, perfect price and good safety.
    SKU: ATO-OLR-015
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    20 hp 3 phase output line reactor at a low price, superior quality, 40A rated current. It can be used for voltage 220V, 380V, 400V, 410V, 440V, 460V or 480V, work frequency is 50/60Hz.

    Line Reactor for VFD Specifications

    Basic Model ATO-OCR-0040-0M23-0.4SC
    Recommended VFD Model GK3000-4T0150G (20 hp three phase VFD )
    Phase 3 Phase
    Power 20 hp (15 kW)
    Weight 10 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 40 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.18 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    15 kW 3-Phase Output Line Reactor Mounting Dimension

    2hp 3 phase output reactor

    Dimension(±5mm)
    L D W W1 H A×B
    155 95 130 78 135 6×15

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram

    Tips: Instructions for use of AC reactor

    In order to increase the distance between the inverter and the motor, the cable can be thickened appropriately to increase the insulation strength of the cable, and shielded cables should be used as much as possible.

    Since the output voltage of the inverter has more high-order harmonics, the transmission line between the inverter and the motor should not be too long. If the wire is too long, its distributed capacitance will also be large. In this way, under the action of the harmonic voltage, the higher harmonic current will also be too large.
    Therefore, when the output cable between the inverter and the motor is too long, an output reactor should be installed.

    The parameter selection of the output reactor in the inverter input and output protection circuit, the calculation and design principles are basically the same as that of the input reactor, but the inductance of the output reactor is based on the fact that the voltage when the fundamental current flows through the reactor is not greater than the rated voltage The voltage is better.
