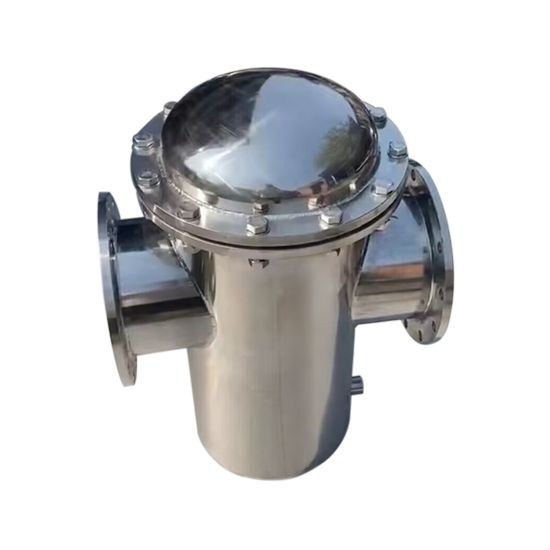

2 inch Stainless Steel Basket Strainer

2 inch stainless steel basket strainers for sale online. The simplex basket strainer is a small device that removes a small number of solid particles in liquids and can be used to remove unwanted particles, debris and other impurities.

Specification

• Model: ATO-HG50
• Type: Basket Type Strainer
• Nominal Diameter: 2 inch (DN50)
• Working Pressure: 1.6-10MPa
• Product Material: Stainless Steel
• Connection Form: Flange
• Temperature Range: 0°C~330°C
• Filtration accuracy: 100-400 mesh
• Medium: Water, oil

Dimension (mm)

Detail

Application

Tips: What is a basket strainer?

Basket strainer, also known as barrel strainer. It is mainly composed of connecting pipe, main pipe, strainer basket, flange, flange cover and fasteners, etc. It is used to remove particles in process water and recirculating liquid. When the liquid enters the strainer basket through the main pipe, the solid impurity particles are blocked in the strainer basket, while the clean fluid passes through the strainer basket and is discharged from the strainer outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and reinstall it after cleaning. Therefore, it is extremely convenient to use and maintain.
