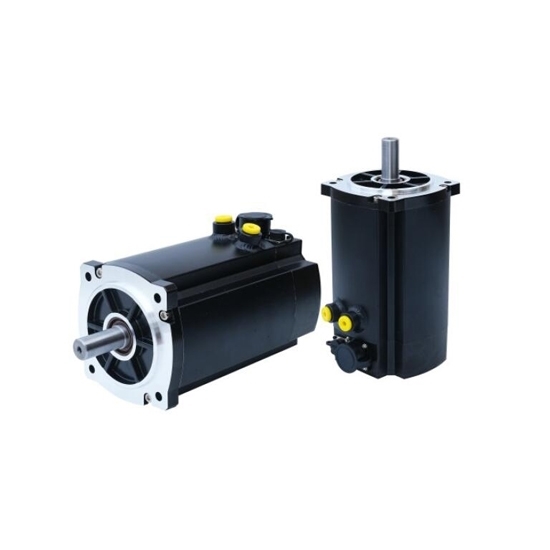

2.5 kW Servo Motor, Water Cooled, 380V, 8 Nm, 3000 rpm

$911.69

2.5kW servo motor manufacturer direct sale. It is a water-cooled AC servo motor with rated voltage 380V, rated torque 8 N.m, and rated speed 3000 rpm, which provides precise control of angular or linear position, speed, and acceleration.

Absolute Encoder *
Motor Cable & Encoder Cable *
With Matched Drive *

SKU: ATO-SERVO-6SL

Qty:

30-day Returns

Delivery date: 6-12 days

Overview

Hot sale 2500W AC servo motor comes with a rated voltage of 380V, a rated torque of 8 N.m, and a rated speed of 3000 rpm. This liquid-cooled servo motor is commonly used in robotics, automation, manufacturing, and so on.

Specifications

Model: ATO-130SY-M08030HS1-6SL
Rated Power: 2.5kW
Rated Voltage: 380V
Rated Current: 10.5A
Rated Torque: 8 N.m
Maximum Torque: 16 N.m
Rated Speed: 3000 rpm
Maximum Speed: 6000 rpm
Rotor Inertia: 0.85X10^-3kg.m²
Weight: 12.6kg
Length: 243mm

Dimension (Unit: mm)

Water cooled servo motor dimension

Winding Wiring

Winding Lead	U	V	W	PE
(Aviation Plug) Socket Number	2	3	4	1

Encoder Wiring

Signal Definition	E-	E+	SD-	GND	SD+	Vcc	PE
Socket Number	2	3	4	5	6	7	1

Tips: What is a water-cooled servo motor?

The water-cooled servo motor is an advanced type of servo motor that uses water as a coolant to manage and dissipate the heat generated during its operation. Unlike traditional air-cooled motors, water-cooled servo motors have an internal cooling system where water circulates through channels or jackets around the motor's stator and other critical components. This method of cooling offers several advantages.

Firstly, water-cooling is highly efficient at removing heat, allowing the motor to maintain optimal performance even under high loads and continuous operation. This makes water-cooled servo motors ideal for applications requiring high power density and precision, such as in robotics, CNC machinery, and industrial automation.

Secondly, the effective cooling reduces the motor's thermal stress, leading to longer operational life and improved reliability. It also allows the motor to operate at higher speeds and torques without overheating, enhancing overall productivity.

Lastly, water-cooled servo motors can be more compact than their air-cooled counterparts since the efficient cooling system reduces the need for large external heat sinks or fans. This compactness is beneficial in space-constrained applications.

Overall, water-cooled servo motors provide superior performance, efficiency, and durability, making them suitable for demanding industrial environments where precision and reliability are crucial.
