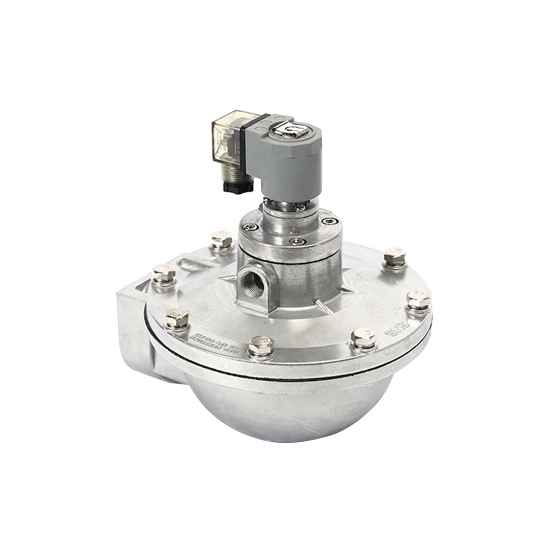

2-1/2" Pulse Solenoid Valve for Dust Collector

ATO pulse solenoid valve is a type of valve used in various industrial applications, particularly in systems that involve the control of gases, such as air or other gases. Pulse valves are commonly used in dust collection systems, baghouse filters, and similar applications to help clean and maintain the efficiency of these systems.

Specification

• Model: ATO-SMFZ-62S
• Port Size: G2-1/2 inch
• Connection Type: Threaded Type
• Channel Position: Right Angle
• Flow Direction: Unidirectional
• Applicable Media: Air
• Voltage (Optional): AC110V, AC220V, DC24V
• Coil Power: 20VA
• Temperature: -5~60℃
• Working Pressure: 0.3~0.8MPa
• Max. Pressure: 1.0MPa
• Relative Humidity: ≤80%RH
• Diaphragm Life: More Than 1 Million Times
• Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Details

Tips: Dust collector pulse valve advantages

Dust collector pulse valves play a crucial role in the efficient operation of dust collection systems, offering several key advantages. Firstly, they enable the periodic release of compressed air into the filter bags, creating a powerful pulse that dislodges accumulated dust and particulate matter. This helps maintain optimum filtration efficiency, prolonging the lifespan of filter bags and reducing maintenance costs.

Additionally, pulse valves are known for their rapid response times, ensuring timely cleaning cycles without interrupting the overall dust collection process. This enhances the system's continuous operation and minimizes downtime.

Furthermore, these valves are energy-efficient, as they only consume compressed air during the short pulse duration, resulting in reduced operational costs. Their reliability and robust design make them suitable for demanding industrial environments. Pulse valves offer versatility in controlling the cleaning frequency and intensity, adapting to changing dust loads and optimizing overall system performance. In summary, dust collector pulse valves contribute to cost-effective, reliable, and efficient dust collection processes in industrial settings.
