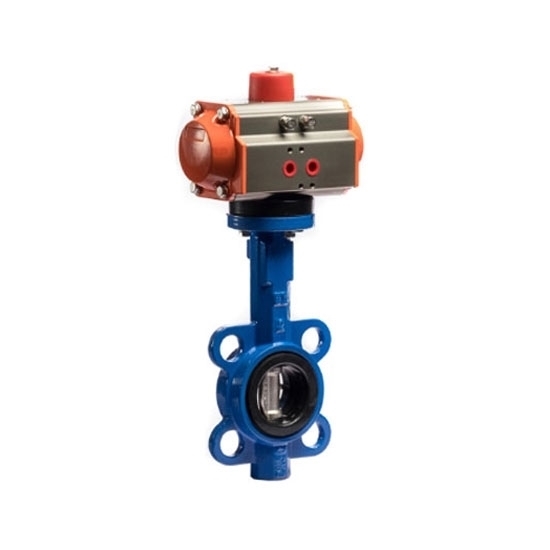

    2-1/2" Pneumatic Wafer Butterfly Valve

    $276.99
    Industrial 2-1/2 inch pneumatic actuated butterfly valve for sale, 65mm (DN65) port size, equipped with double acting pneumatic actuator. Wafer type butterfly valve has cast iron body and SS disc, and PVC butterfly valve has PVC body and UPVC disc, working pressure PN16, working temperature -10 °C to 120 °C, high performance and reliable.
    *
    SKU: ATO-PBV-65
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    2-1/2 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 65mm (DN65) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

    Specification

    Butterfly Valve Model ATO-PBV-65
    Media Water, Air, Gas, Oil, Liquid, etc.
    Butterfly Valve Type Wafer Type PVC Type
    Port Size 2-1/2 inch (DN65, 65mm, 2.5 inch)
    Body Material Cast Iron PVC
    Disc Material Stainless Steel (SS) UPVC
    Seat Material EPDM
    Working Temperature -10 °C to 120 °C
    Pneumatic Actuator Model ATO-AT063D
    Actuator Type Double Acting
    Bore Size 63mm
    Air Pressure 0.25 - 0.8MPa, PN16
    Pressure Difference 0 - 1.0MPa
    Air Supply Port 1/4 inch
    Actuator Material Aluminum Alloy


    Wafer Butterfly Valve Body Dimension (Unit: mm)

    Body dimensions of pneumatic actuated wafer type butterfly valve

    DN L H1 H2 A D D1 N-φd
    65 44.5 89 290 167 136 118 4-26.5


    PVC Butterfly Valve Body Dimension (Unit: mm)

    Body dimension of pneumatic actuated PVC butterfly valve

    JIS ANSI DIN D D2 D3 H2 H3 W1 W2 d1 D4 S H L
    D1 n-φe D1 n-φe D1 n-φe
    140 4-19 139.5 4-19 145 5-18 180 69.5 120 113 13 46 31 6.5 50 14 240 167


    Pneumatic Actuator Dimension (Unit: mm)

    Pneumatic actuator dimension

    ATO-AT063D

    Q A B C D E F G H I
    Φ36/Φ50mm 167mm 82mm 35mm 47mm 113mm 85mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    Details

    2-1/2" Pneumatic Wafer Butterfly Valve Details

    Tips: Advantages of pneumatic butterfly valve

    • Small and light, easy to disassemble and maintain, and can be installed in any position.
    • The structure of the pneumatic butterfly valve is simple and compact, the operating torque is small, and the 90° rotation can be opened quickly.
    • The flow characteristics tend to be straight, and the adjustment performance is good.
    • The connection between the butterfly plate and the valve stem adopts a pin-free structure, which overcomes the possible internal leakage point.
    • The outer circle of the butterfly plate adopts a spherical shape, which improves the sealing performance and prolongs the service life of the valve. It still maintains zero leakage for more than 50,000 times of opening and closing under pressure.
    • The seals can be replaced, and the sealing is reliable and can achieve bidirectional sealing.
    • The butterfly plate can be sprayed with coating according to user requirements, such as nylon or PTFE.
