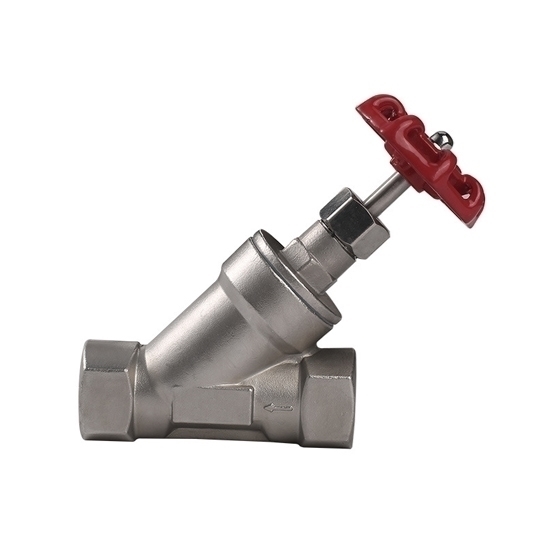

2-1/2" Manual Angle Seat Valve

ATO manual angle seat valve with unique tilt seat design facilitates efficient flow control, resulting in precise regulation of liquids and gases. It is a reliable solution for fluid handling, providing efficiency, durability and ease of use in a variety of industrial environments.

Specification

• Model: ATO-MANGLE-DN65
• Thread Port Size: 2-1/2 inch (DN65)
• Working Medium: Air, Water, Oil, Gas, Steam
• Body Material: 304 Stainless Steel
• Driving Mode: Manual
• Mode of action: Single Acting
• Nominal Pressure: 25Mpa
• Sealing Method: Soft Seal
• Sealing Material: PTFE
• Flow Direction: One Way

Manual Angle Seat Valve Dimension

• G: 2-1/2 inch (DN65)
• L: 185mm

Tips: What is an angle seat valve used for?

An angle seat valve, also known as an angle valve or angle seat piston valve, is a type of control valve commonly used for various fluid control applications. It features an angled body design with a piston-like sealing element that moves linearly within the valve, regulating the flow of liquids or gases. Angle seat valves are primarily employed to control the flow of media in a wide range of industries, including industrial, chemical, pharmaceutical, and water treatment.

These valves offer precise control over flow rates and are capable of handling a variety of media types, including corrosive, viscous, or high-temperature fluids. Their design allows for efficient modulation of flow by adjusting the position of the piston, making them suitable for tasks such as filling and draining tanks, controlling steam or compressed air, and regulating process fluids. Angle seat valves are often chosen for their reliability, ease of maintenance, and compatibility with both on-off and proportional control systems, making them a versatile solution for fluid control in diverse industrial settings.
