1kVA Single Phase 230v 50Hz to 110v 60Hz Converter

4.9 out of 5 based on 15 reviews | Write a review

$1,549.96

Reasonable price 1 kVA frequency converter, changing 1 phase 220V 230V 240V 50 Hz to 110 Volt 60 Hz, 120V 60Hz to 240V 50Hz, convert fixed frequency to the required frequency and voltage with pure sine wave output, portable AC power source.

Input Voltage (Single Phase) *

Output Frequency *

50Hz/60Hz
400Hz [+$199.00]

SKU: HZ-60-1101

Qty:

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

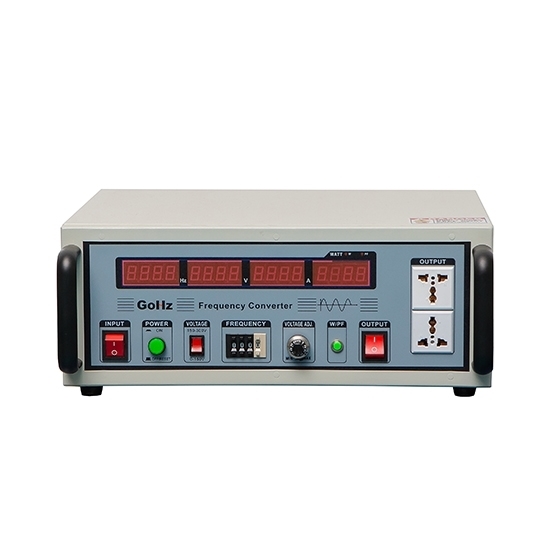

1 kVA static pure sine wave frequency converter (AC power supply) with built-in step up & step down transformer, 50Hz 60Hz up to 400Hz frequency conversion.

Specification:

Model	HZ-60-1101
Capacity	1 kVA
Dimension	420 (D)330 (W)180 (H) mm
Weight	45 kg
Input	Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	120V Setting (Low grade): 0-150V, 8.4A
	Voltage, current	240V Setting 0-300V (High grade): 0-300V, 4.2A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Features and Safe Usage Guide

Here is a video that shows you the main features of ATO single phase frequency converter and how you can use it to effectively and safely power electric equipment.

Tips: Why does the aircraft use 400Hz power?

The frequency of AC power supply is usually 50Hz or 60Hz. Most of the countries in Asia and Europe adopt the electricity grid in the frequency of 50 Hertz. The United States, Japan, Canada, Taiwan in China, Brazil, the Philippines, Saudi Arabia and other countries adopt the electricity grid in the frequency of 60 Hz.

Then, why is the power source of the airplane 400Hz? Originally, if the frequency of the system is higher, fewer copper and steel materials will be used for the generator and transformer. Accordingly, the weight is lighter and the cost is lower. The shortcoming is that inductive reactance of the electrical device and circuit increases, the capacitive reactance decreases, the loss increases, and the transmission efficiency decreases. Conversely, the low frequency will increase the amount of materials used in electrical equipment, increase the weight and cost. Therefore, 50Hz and 60Hz are not suitable.

There is a well-known saying in the aviation industry: Struggle to decrease every gram! Therefore, the aviation motor is required to have a high frequency, so as to reduce the volume and decrease the weight. However, the electrical transmission line on the plane is not too long, thus the loss is not the main contradiction. Therefore, 400 Hz power supply is the choice.

MOS Tube Testing in a Frequency Converter

In this video, we first show you the internal structure of our frequency converter, so that you know the exact location of the MOS tube in the converter, and then we use a multimeter to test these tubes in diode mode and ohm range respectively. In the process, we also explain to you how to judge the condition of the equipment.

Frequency Converter Troubleshooting: CBB65 Capacitor Testing

This video will walk you through the steps of how to test the CBB65 capacitor in a frequency converter using a multimeter.

Frequency Converter Driver Board Test

This is one of the ATO single-phase frequency converter repair tutorial series. In this video, we show you how to simply test the driver board in the variable frequency power supply using a multimeter.

Pre-maintenance preparation of frequency converters

In this presentation, we show you the maintenance preparation procedure for an ATO single-phase frequency converter (cabinet version), specifically, involving the disconnection of the internal bridge rectifier.

Cabinet Frequency Converter Wiring and Testing

This video gives a rundown of how to wire and test a 1 single cabinet frequency converter using a multimeter. ATO provides a wide range of high quality single and three phase frequency converter available in rack-mounting and cabinet styles. Rated capacity ranges from 500VA/1kVA/2kVA to 200kVA. In addition to the typical frequency conversion between 50Hz and 60Hz, our converters also provide the maximum output frquency of 400Hz, tailored to various industrial application requirements.

Frequency Converter 60Hz to 50Hz Operation Demo

This video is a brief demo of on-site operation of ATO 1-phase frequency converters that are able to convert 110V 60Hz to 230V 50Hz or vice versa. Besides, we also provide versions of 120V 60Hz to 220v 50Hz, 220V 50Hz to 110V 60Hz, 240V 50Hz to 120V 60Hz for option.

Existing reviews of 1kVA Single Phase 230v 50Hz to 110v 60Hz Converter

I have a problem

We received the frequency convertor and want to use it but every time we turn on the "input power", our earth leakage circuit breaker of the room is shut down. Can you help us if we do something wrong?

From: Alcazar | Date: 22/08/2024
