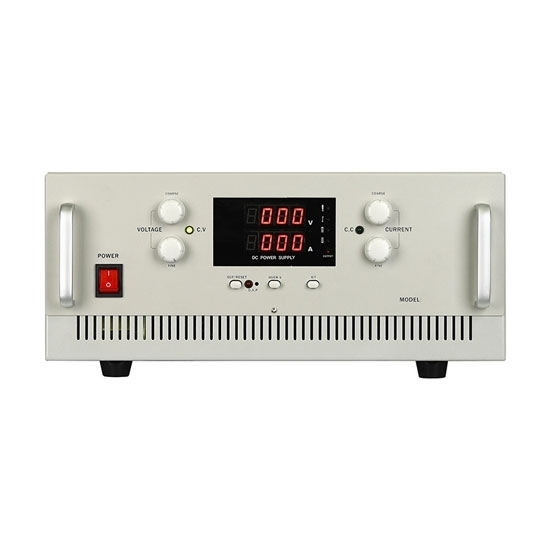

    150A 60V 9000W Variable DC Power Supply

    $3,171.39
    Economical price variable DC power supply is designed with adjustable 0-60V output voltage and 0-150A output current, offering flexibility for diverse electronic components and projects. It is switching mode with 9000W DC output power, selectable single phase 110V or 220V±10% AC input, 3 digit LED display. Equipped with digital control features, this DC power supply allows users to set desired voltage and amperage levels with accuracy.
    *
    SKU: ATO-VDCPS60150K
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    150 amp 60 volt variable DC power supply unit serves as a dependable source of power, supplying the necessary energy for testing, prototyping, and powering electronic circuits. Its regulated nature guarantees a stable output, safeguarding connected devices from voltage fluctuations.

    Specification

    Model ATO-JK10060K
    Input Voltage Single Phase 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-100V
    Output Current Range 0-60A
    Output Power 10000W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage ±0.5%, Output Current ±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ≤0.5%, Constant Current ≤0.5%
    Line Regulation (CV) Stable Voltage ≤0.5%
    Ripple Voltage ≤1%
    Insulation Resistance Input-Output: ≥20MΩ
    Input-Chassis: ≥20MΩ
    Output-Chassis:≥80MΩ
    Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
    Input-Chassis: AC1500V, 10mA, 1 minute
    Output-Chassis: AC1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ≤5% + 0.5A
    Operating Ambient -10℃ to + 45℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Overheat Protection Ambient Threshold 70℃ to 80℃
    Mean Time Between Failures ≥50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE, RoSH
    Warranty 12 Months
    Size 430 (L) x 255 (W) x 155 (H) mm
    Weight 26kg


    Detail

    Details of 150A 60V Adjustable DC Power Supply

    Details of 150A 60V Variable DC Power Supply

    Tips: What is the purpose of the current limiting feature on a variable DC power supply?

    The current limiting feature on a variable DC power supply serves to protect electronic circuits and components from excessive current, preventing potential damage due to overloading. It allows users to set a maximum current output, acting as a safeguard during experimentation or circuit testing. When the current drawn approaches or exceeds the preset limit, the power supply automatically reduces the output voltage to maintain the specified current level. This feature is particularly useful in preventing overheating, component burnout, or irreversible damage to sensitive devices. It provides a controlled environment for testing and development, enhancing the reliability and safety of electronic experiments by ensuring that the connected circuit operates within safe current parameters.
