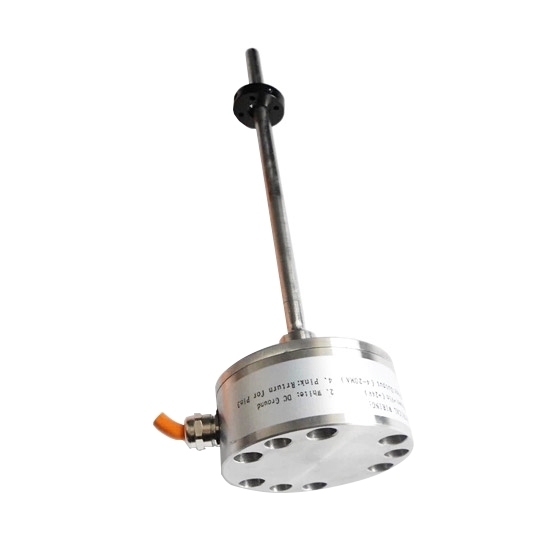

    1500mm Magnetostrictive Linear Displacement Sensor

    $1,079.81
    Magnetostrictive linear displacement transducer with closed design, suitable for hydraulic cylinder with U-shaped earrings, high precision, non-contact, anti-interference ability, anti-fouling, oil-proof, waterproof, corrosion resistance.
    SKU: ATO-MSD-WA1500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive sensors have effective travel 50mm-5000mm. The length of electronic bin is 34mm, the length of the buffer area both ends can be defined by the customer. Magnetostrictive displacement sensors can be widely used in mobile machinery, power machinery, construction machinery, etc.

    Specification:

    Basics Model ATO-MSD-WA1500
    Measuring range 0~1500 mm
    Shipping weight 8 kg
    Length 1648.3 mm
    Width 97 mm
    Technical parameters Linearity ≤0.03%FS (minimum±50μm)
    Repeatability ≤0. 001%FS
    Working Voltage 24VDC±10%
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0-5V / 0-10v / 4-20mA
    Temperature - 40℃~+85℃
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
    Electronic bin material 304 or 316L stainless steel (special custom-made)
    Type of lead wire PG7 connection (waterproof joint); Aviation plug
    Protection Class IP68 (waterproof joint), IP67 (aviation plug)
    Installation method Six M6X16
    effective travel in this series (customizable) 50-5000mm

    Installation diagram (unit: mm):

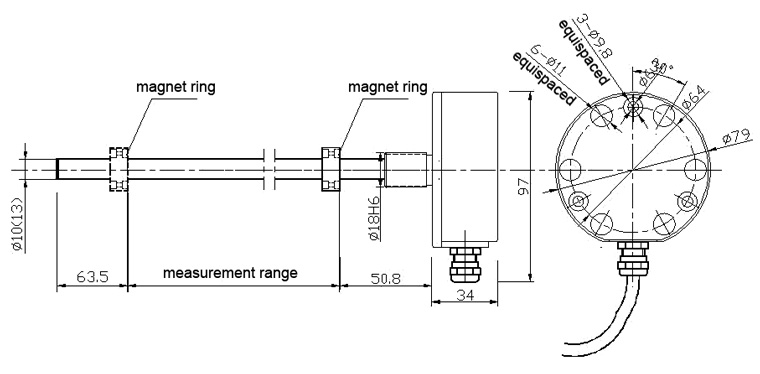

    1. PG7 connection
    magnetostrictive sensor WA series PG7 connection

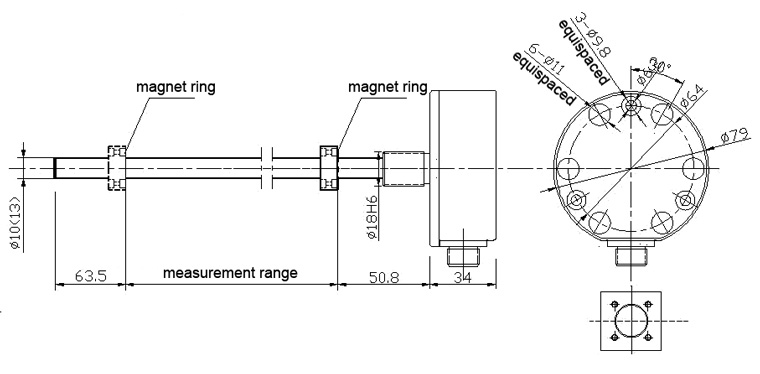

    2. Aviation plug connection
    magnetostrictive sensor WA series aviation plug connection
    Tips: Magnetostrictive sensor for overall dam displacement detection
    Magnetostrictive displacement sensor is fixed on the instrument inside the case, protect the reference line (connecting both ends of dam) by tube, make sure reference line not easily been interfered. Reference line is mounted with special made magnet ring, and the bushing of magnet ring is on test pole of sensor, but no touching with each other. Reference line keeps in stable condition through inert water or other methods. When dam has displacement, magnet ring will have a movement relative to test pole. Magnetostrictive sensor could transmit the testing signal to control room immediately, and test personnel could know the displacement status of dam immediately.
