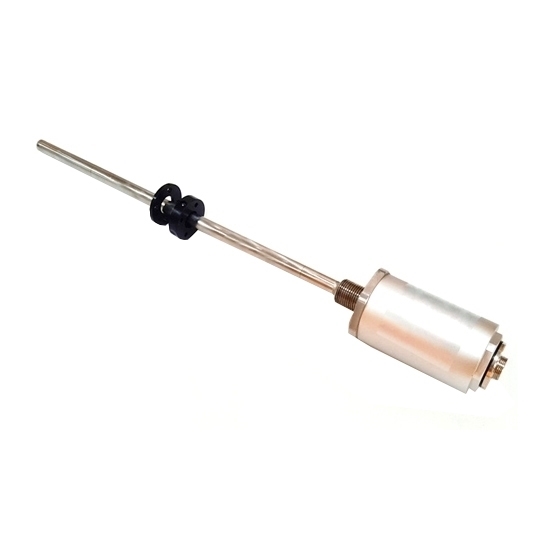

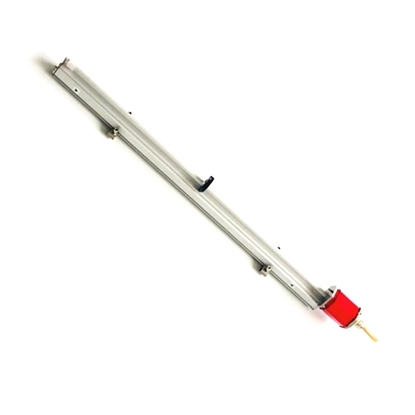

    1500mm Displacement Measurement Sensor for rolling mill

    $1,079.81
    Magnetostrictive displacement transducer for rolling mill, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-1500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive displacement measurement sensor with measuring range 1500mm is used for the machinery position preset and feedback, such as the rolling mill position. Magnetostrictive displacement sensors have effective travel 50mm~15000mm, can be used in most industrial automation systems.

    Specification:

    Basics Model ATO-MSD-1500
    Measuring range 0~1500 mm
    Shipping weight 8 kg
    Length 1699.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation
    Tips: Magnetostrictive sensor apply in servo manipulator control system
    Hoist manipulator mounts at the rear side of vehicle, mainly used for hoisting heavy load capacity object, and accomplishes the transshipment between this vehicle and carrier vehicle. The control system adopts hydraulic driving mode, composed of constant rate pump, support oil cylinder, tilt cylinder, folded cylinder and telescopic cylinder etc. Tilt cylinder, folded cylinder and telescopic cylinder adopt built-in magnetostrictive sensor, can achieve accurate stroke control and feedback.
