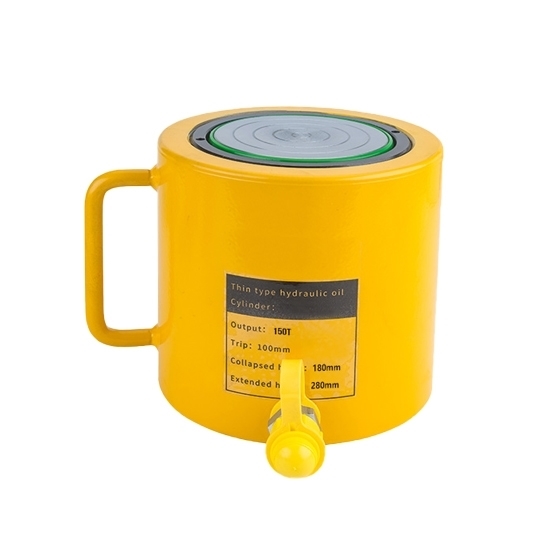

    150 ton Hydraulic Bottle Jack

    $1,399.23
    Longlife hydraulic bottle jack is used for lifting objects efficiently and safely. 100mm stroke, enough capacity, portability, flexibility and big jacking force. Portable 150 ton hydraulic jack works with an electrical pump, suitable for a variety of environments.
    *
    SKU: ATO-HBJ-150
    30-day Returns
    Free Shipping

    Factory price hydraulic jack for sale online. It is a bottle jack that uses hydraulic power to lift heavy loads,  lift up to 150 ton. Matched with a hydraulic pump, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

    Features

    • Hydraulic bottle jack with 150 ton capacity is designed for lifting heavy loads.
    • Blackening of the plunger surface to protect the using of the longevity of the product.
    • The plunger has the function of retracting automatically.
    • The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
    • 150 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

    Specifications

    Hydraulic Bottle Jack Model ATO-FCY-150100
    Tonnage 150 ton
    Self Height 180mm
    Stroke 100mm
    Outer Diameter 205mm
    Inner Diameter 135mm
    Weight 47kg
    Matched Hydraulic Pump DYB-63A
    Matched Hydraulic Jack Pump Model ATO-DYB-63A
    Motor Power 0.75kW
    Working Voltage 220V
    High Pressure 70Mpa
    Low Pressure 7Mpa
    High Pressure Flow 0.9L/min
    Low Pressure Flow 5L/min
    Fuel Tank Capacity 7L (Customizable, Sold without oil.)
    Motor Speed 1400r/min
    Weight 25.9kg


    Details

    Hydraulic jack details

    *Notes

    • This hydraulic jack is not recommended for cars.
    • In order to operate correctly all cylinders need to be connected to a solid lifting surface.
    • Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.Notes of hydraulic jacks

    Applications

    At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

    Hydraulic jack applications

    Tips: Advantages of Hydraulic Jacks

    • The entire hydraulic transmission equipment of the hydraulic jack is small in size and dense in structure, the force is relatively balanced and uniform and the internal load curve changes relatively smoothly.
    • Hydraulic jacks are relatively easy to achieve overload protection, which is to achieve protection by setting a safety valve during work. At the same time, hydraulic equipment can automatically perform lubrication work, which ensures that the equipment has a longer life.
    • Hydraulic transmission requires a separate energy source during use and can be used repeatedly until the hydraulic oil reaches the specified replacement work cycle, which is generally very long.

    Hydraulic bottle jack dimensions

    SKU Tonnage (t) Self Height (mm) Stroke (mm) Outer Diameter (mm) Inner Diameter (mm) Weight (kg)
    ATO-HBJ-10 10 156 100 63 38 3.5
    ATO-HBJ-20 20 156 100 84 50 5.7
    ATO-HBJ-30 30 162 100 104 60 9.5
    ATO-HBJ-50 50 162 100 128 80 13.5
    ATO-HBJ-100 100 172 100 178 110 27.8
    ATO-HBJ-150 150 180 100 205 135 47
    ATO-HBJ-200 200 202 100 238 160 70
