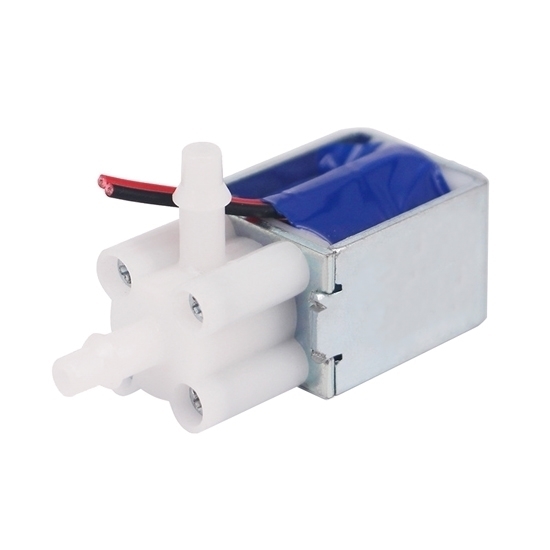

    12V Mini Solenoid Valve, 2 Way

    $55.63
    Strong power mini electric solenoid valve with 12V rated voltage. Used fuild of mini solenoid valve 12V is air. Solenoid valve price is cheap and reasonable. Two way solenoid valve often used in eye massager, beauty equipment, breast pump and oxygen generator.
    SKU: ATO-MSV-12V
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    The smaller size of mini solenoid valves makes them suitable for installations in tight spaces or where weight and size constraints are critical. Despite their reduced dimensions, they still offer reliable and precise fluid control.

    Features:

    • Good food grade rubber material, high purity, good wear resistance, long life.
    • Compact design, low temperature rise, no noise, fast response, high frequency.
    • High quality motor, strong and durable, less heating noise, the surface increase is not easy to corrosion process, ease of use.

    Specification:

    Model ATO-KYK0626GF-12V
    Rated Voltage DC 12.0V
    Rated Current 171 mA±10%
    Resistor 70Ω±10%
    Exhaust Time max.30 seconds from 300 mmHg reduce to 15 mmHg at 100 CC tank
    Airtightness max.3 mmHg from 300 mmHg at 100 CC tank
    Insulation Grade A
    Used Fluid air
    Use Environment 0-50 ℃ 75% RH
    Working Mode normally closed
    Life Test 200000 times (12s on and 5s off)
    Net Weight 41g


    Dimension (Unit: mm)

    Mini solenoid valve dimension

    Application:

    Mini solenoid valve application

    Tips: How Does Mini Solenoid Valve Work?

    A mini solenoid valve operates by using an electromagnetic coil to control the flow of fluid or gas through a small opening. The valve consists of a coil, plunger, and a valve body with an orifice. When an electric current passes through the coil, it creates a magnetic field, which attracts the plunger towards the valve body. This movement opens the orifice, allowing the fluid or gas to flow through. Conversely, when the current is removed, the magnetic field collapses, and a return spring pushes the plunger back, closing the orifice and stopping the flow.
