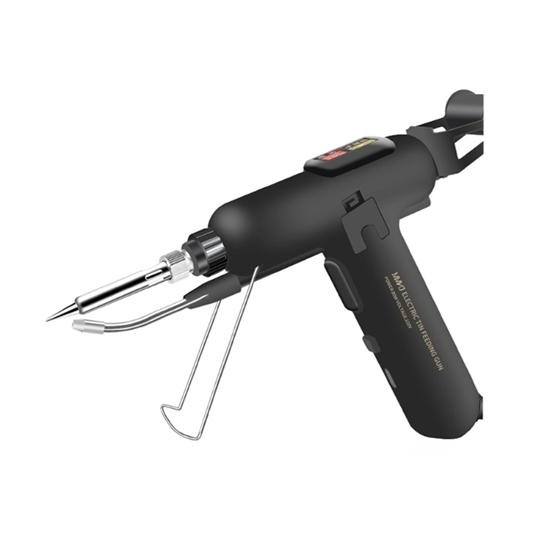

120W Automatic Electric Soldering Gun

Small size automatic electric welding gun with 120 watt power and up to 600°C rise. This professional torch is perfect for the welding needs of professionals or novices.

Specification

• Model: ATO-SD-E120W
• Power: 120W
• Working Temperature: 600 °C
• Voltage: 110/220V
• Power Plug: Euro/US/UK/AU
• Power Switch: Yes
• Indicator Light: Yes
• Dimension: 240* 145* 32mm
• Applicable Wire Diameter: 0.5mm~1.2mm
• Weight: 0.23kg

Details

Usage Introduction

1. Attaching the solder wire to the holder.
2. Pass the wire through the soldering gun.
3. Secure the holder.
4. Check that the wire flows smoothly.
5. Connect to the power supply and check that the indicator light is on.
6. Complete the steps and start soldering.

Sockets

Applications

Soldering guns are widely used in the manufacture and repair of electronic devices, such as computers, radios, and televisions. They are also used in automotive and industrial settings, where they are used to repair electrical wiring, circuit boards, and other components. Additionally, soldering guns are used in jewelry making and metalworking, where they are used to join metal components together for decorative and functional purposes.

Tips: What is the difference between solder iron and gun?

A solder iron is a tool used for soldering or welding metals, plastics, or other materials. It has a pointed tip and a heated element that melts solder wire to join two parts together.

On the other hand, a solder gun is a high-powered soldering tool that produces a significant amount of heat to solder large components, wires, or electronic devices. It has a pistol-like design with a trigger that activates the heat and a built-in flux dispenser.

The main difference between a solder iron and a gun is their power output and the size of the work they can handle. A soldering iron is suitable for small electronic parts and delicate soldering tasks, while a solder gun is used for heavier duty work that requires higher temperatures and more power.
