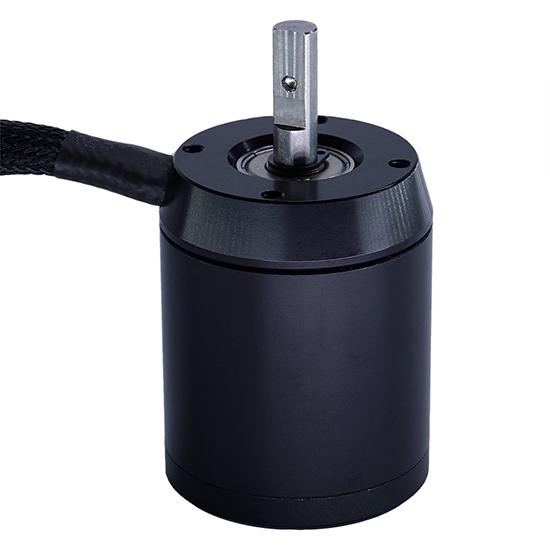

1200W 200KV 6-12S Outrunner Brushless Motor for Skateboard

5 out of 5 based on 2 reviews | Write a review

$135.38

Buy outrunner brushless motor for electric skateboard/longboard use. Maximum power 1200W, optional rotation speed 200KV/140KV, input voltage 6-12S (DC 22-44V), current 34A, torque 1.2N.m, shaft diameter 8mm. Matching kit of BLDC motor pulley and speed controller is recommended.

Speed KV (RPM/V) *
With ESC Controller *
With Pulley *

SKU: ATO-BLDC-H5065

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low price 200KV/140KV outrunner brushless DC motor for sale. Max power 1.2kW, power supply 6-12S (DC 22-44V). Combined with BLDC motor driver to control speed for your electric skateboard/longboard/mountainboard.

Specification

Model	ATO-BLDC-H5065
Max Power	1200W (1.6 hp)
Rotation Speed KV (RPM/V)	200KV, 140KV
Max Current	34A
Input Voltage*	DC 22-44V
Max Torque	1.2 N.m
Recommend ESC	3-12S 50A (FSESC4.20 50A)
Weight	1.64 lb (0.745 kg)
No-Load Current	0.6A
No-Load Speed	5200 rpm
SHAFT diameter	8mm (Recommended ATO 8mm D-shape motor pulley)
Motor Wire	300mm
Shipping Package	ATO-H5065 motor1, free VESC sensor wire1

*Note: The motor is powered by 6-12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

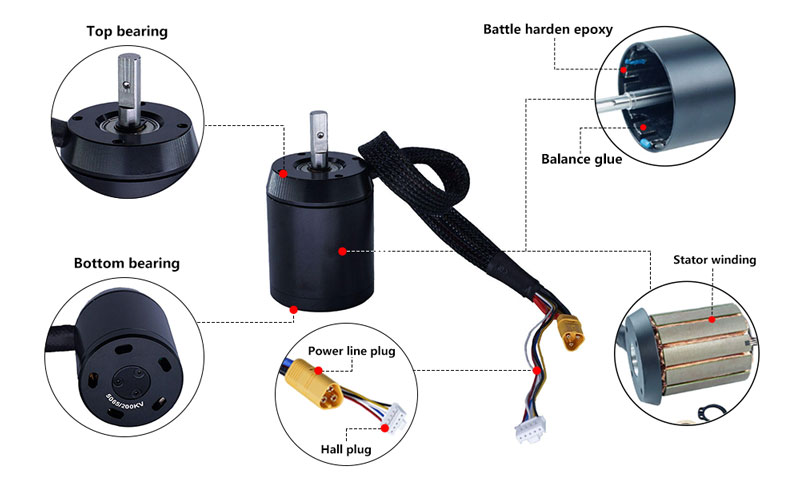

1200W Outrunner Brushless DC Motor Details

Brushless DC Motor Dimensions Drawing (Unit: mm)

1200W 200KV 6-12S Brushless Motor for Electric Skateboard

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20*	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Principle analysis for the propeller of electric skateboard brushless motor.

A propeller is usually composed of blades and blade valleys. The connecting part of propeller and tail shaft is the blade valley, which is usually conical. To reduce the water resistance, a fairing (hub cap) was added at the rear end of the blade valley to form a lightweight downstream streamline body together with the blade valley. The blade is fixed on blade valley. The propeller usually has 2-6 blades. The more blades, the smaller the vibration of blades.

When the propeller of an electric skateboard BLDC motor rotates, the circular trajectory of the blade tip is called the tip circle. Diameter of the tip circle is the diameter of propeller. Distance from the tip of blade to the centerline of blade is called propeller radius. The area of tip circle is called disc area. When the electric skateboard brushless DC motor starts, propeller starts to rotate forward. The side of blade that first contacts the water is called the leading surface, and the other side is called the follower surface.

Existing reviews of 1200W 200KV 6-12S Outrunner Brushless Motor for Skateboard

Good motor

Great motor for the money, I bought this 1200W brushless motor 2 years ago. But for some reasons I idle the motor, two days ago, I need a motor to finish my project, it's still working and work perfectly! This is by far the best motor I've tried so far. I've already ordered a second one for another project!

From: Luke | Date: 12/04/2022

Was this review helpful? Yes No (0/0)

Solutions for brushless motors

Hi Sameh.
I have successfully installed a unit in my boat and it is working forward and reverse. However, the forward/ reverse switch in the controller does not work on command. It often takes time and fiddling with the potentiometer and or function switch. Do you have a solution as when underway in the water I need instant and reliable switching?

From: Markmac | Date: 10/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

It is true that this forward/ reverse switch does not have command control function and can only be operated manually.
At the same time, when you switch forward and reverse, it will take a certain period of time for the motor to switch to another direction due to inertia, so it is difficult to change this.
Sorry we do not have other solutions at present.
