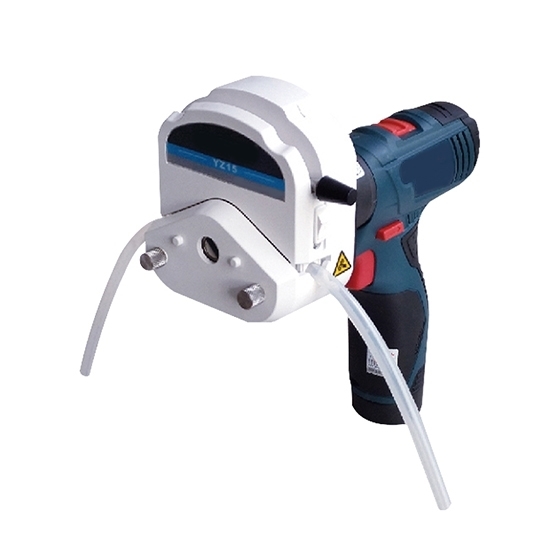

    1200 GPD DC 10V Handheld Peristaltic Pump

    $6,984.92
    Handheld peristaltic pump with pneumatic explosion-proof motor, powered by DC10.8V rechargeable battery. Flow rate range 300~3300mL/min (1200 GPD), Speed 30~340 rpm, applicable tubing 4.8/6.4/7.9/9.6mm inner diameter. Portable industrial peristaltic pump, small size, low price, matching other specifications of pump heads and hoses is available.
    *
    SKU: ATO-IPP-1200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Handheld peristaltic pump is driven by air explosion-proof motor, small size, portable, specially designed for field sampling. High flow peristaltic pump with 1200 GPD (3300mL/min) maximum flow rate, powered by DC 10.8V battery. Hose inner diameter 4.8/6.4/7.9/9.6mm for selection. Matched with other specifications of tubing and pump heads can get different flow rate.

    Specification

    Model ATO-BX600S
    Water Flow Rate mL/min 300-3300
    GPD (gallon/day) 110~1200
    Speed Range 30~340 rpm
    Power Supply DC 10.8V Rechargeable battery
    Standard Configuration Driver, charger, 2 batteries, pump head, hose, protective box
    Weight 0.9kg

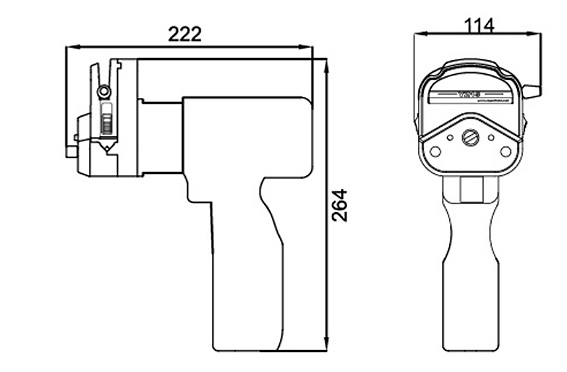

    10V Handheld Peristaltic Pump Dimensions Drawing (Unit: mm)

    Dimensions of 1200 GPD DC 10V Handheld Peristaltic Pump

    10V Handheld Peristaltic Pump Hose Specification (Unit: mm)

    Model Inner Diameter Outer Diameter Wall Thickness
    15# 4.8 9.8 2.5
    24# 6.4 11.4 2.5
    35# 7.9 12.9 2.5
    36# 9.6 14.6 2.5

    Tips: Application of handheld peristaltic pump in sewage sampling.

    In the entire sewage treatment process, a comprehensive inspection and statistics of the influent water quality is the key point in the control of sewage treatment plant. In some small and medium-sized sewage plants, the quality of influent water is affected by the number of people in collection area of the pipe network, the amount of water collected, etc., and it is greatly affected by the abnormal water quality from the outside world.

    When environmental monitoring personnel come to the site for sampling, they are often annoyed by the lack of power at the site. When sampling, it is necessary to collect high specific gravity and high viscosity liquid, solid particle suspension liquid, layered sampling, no cross-infection, easy to carry, etc.

    ATO handheld peristaltic pump can be applied to water quality sampling under various environmental conditions. When using the handheld peristaltic pump, the sewage water sample only flows in the tubing. The liquid delivered by the peristaltic pump only touches the pump hose and not the pump body, so there will be no jamming. A handheld peristaltic pump can be used continuously for a long time, and the same pump can be used for sampling of different sewage by simply replacing the pump hose. The serious blockage of the water inlet of the sampling device is a frequent problem. ATO handheld peristaltic pump has a large flow rate range and is not prone to blockage in actual use. If it is blocked or the hose is contaminated or corroded, the hose can be replaced directly, which is simple and convenient.

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.
