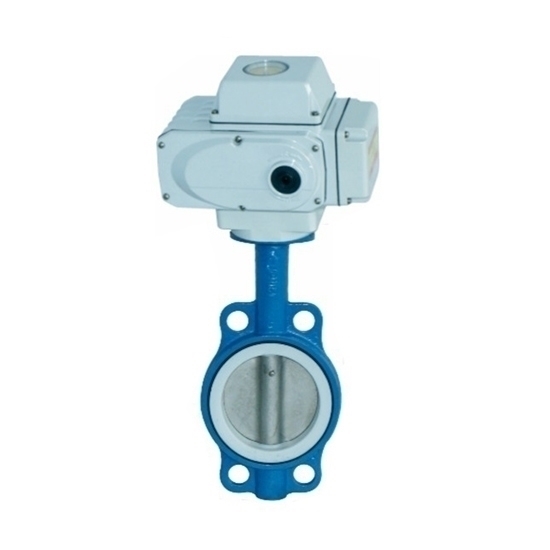

    12" Electric Wafer Butterfly Valve

    $2,434.39
    Industrial favorable price electric actuated wafer style butterfly valve, comes with double acting electric actuator, optional 110V AC, 220V AC, 380V AC, 24V DC power supply. Electrically operated butterfly valve can control water, air, gas, oil and other liquid at -10 °C to 120 °C working temperature, with 12 inch (DN300) port size, cast iron body, stainless steel disc, EPDM seat.
    *
    SKU: ATO-EBV-300WF
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial electric actuated wafer type butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

    Specification

    Butterfly Valve Model ATO-EBV-300WF
    Media Water, Air, Gas, Oil, Liquid, etc.
    Butterfly Valve Type Wafer Type
    Port Size 12 inch (DN300, 300mm)
    Body Material Cast Iron
    Disc Material Stainless Steel (SS)
    Seat Material EPDM
    Working Temperature -10 °C to 120 °C
    Electric Actuator Model ATO-KLST-100
    Frequency 50/ 60Hz
    Power Supply (Optional) 110V AC, 220V AC, 380V AC, 24V DC
    Actuator Input 4-20mA DC
    Actuator Type Double Acting
    Output Torque & Response Time 800N.m, 30s
    1000N.m, 50s
    Actuator Material Aluminum Alloy


    Wafer Butterfly Valve Body Dimension (Unit: mm)

    Electric wafer style butterfly valve dimension

    DN L H1 H2 A D D1 N-φd
    300 77 242 490 280 407 370 4-29

    Details

    Electric Wafer Butterfly Valve Details

    Tips for using electric actuated butterfly valve

    • When the pressure of the electric actuated butterfly valve exceeds the design regulations, it will automatically open to release the excessive pressure in the gas pressure reducer to prevent damage to the container or pipeline.
    • When the pressure in the vessel drops to normal working pressure, it will automatically shut down to avoid exhausting all the gas due to overpressure in the vessel, resulting in waste and production interruption. The electric butterfly valve is mainly composed of 3 parts, including valve seat, valve disc (spool) and loading mechanism. Some valve seats are integrated with the valve body, and some are assembled with the valve body and connected to the equipment.
    • The valve disc is usually attached with a valve stem, and the valve stem is fixed on the valve seat. Above the disc is a loading mechanism that adjusts the loading size. When the pressure in the electric butterfly valve is within a certain working pressure range, the force of the internal medium acting on the valve disc is less than the force exerted on the valve by the loading mechanism, and the difference between the two constitutes the valve disc and the valve seat. The sealing force makes the valve disc press tightly on the valve seat, and the medium of the equipment cannot be discharged.
    • When the pressure in the equipment exceeds the specified working pressure and reaches the opening pressure of the electric butterfly valve, the force exerted by the internal medium on the alarm valve is greater than the force exerted by the loading mechanism on the alarm valve. At this time, the force exerted by the internal pressure on the valve disc is smaller than the force exerted by the loading mechanism, the valve disc is tightly pressed on the valve seat, the medium stops discharging, and the equipment continues to operate under normal working pressure.
