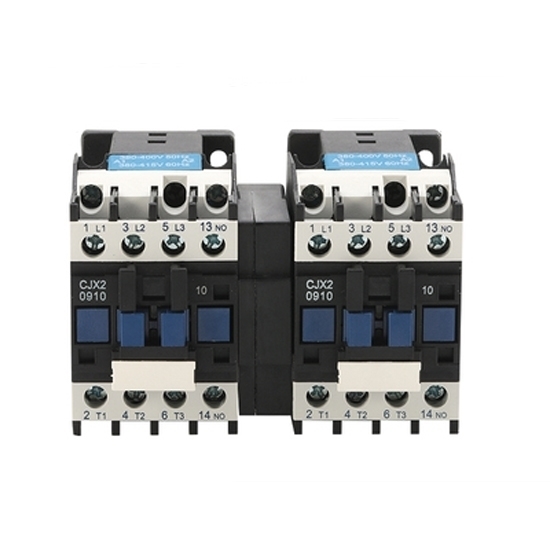

    12 amp Mechanical Interlock AC Contactor

    $69.79
    12 amp 3 pole/ 4 pole mechanical interlocking AC contactor is an electrically controlled switch constructed with a mechanical interlock and two revering contactor, which is used for switching an electrical power circuit, coil rated voltage from 24V AC to 380V AC.
    *
    *
    SKU: ATO-ACCON-12N
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 4 pole mechanical interlocking AC contactor can save electric energy and eliminate power frequency noise at 24V AC to 380V AC coil rated voltage. It is a mechanical system that has simple structure and easy mounting to control circuit.

    Specification

    Model ATO-CJX2-12N
    Rated Operational Current 380V AC-3 12A
    AC-4 5A
    660V AC-3 9A
    AC-4 2A
    Conventional Heating Current 20A
    Rated Insulation Voltage 690V
    Power of Controllable 3-phase Squirrel-cage Motor (AC-3) 220V 3kW
    380V 5.5kW
    660V 7.5kW
    Operational Frequency Electric Life AC-3 1200 times/h
    AC-4 300 times/h
    Mechanical Life 3600 times/h
    Service Life Electric Life (104 Operations) AC-3 100
    AC-4 20
    Mechanical Life (104 Operations) 1000
    Matching Fusing Model RT16-20
    Average Power Consumption (20℃) @ 50Hz Pick-up 76VA
    Holding 9.4VA
    Contact Form (Optional) 3P (Additional 1NO Auxiliary Contact) or 4P
    Rail Size 35mm
    Ambient Temperature -5℃~+40℃
    Altittude ≤2000m
    Class of Pollution Class 3
    Installation Category
    Dimensions 138 x 76 x 82mm
    Weight 1kg

    Tips: What is a mechanical interlock AC contactor?

    Mechanical interlock AC contactor is a combination of reversing contactor and mechanical interlock with a simple mechanical structure, which can save electric energy and eliminate power frequency noise. The device is a dynamic and static iron core, a pull-in coil, and a reaction spring. The pull-in coil is sleeved on the center column of the two iron cores. The iron core is in the shape of a mountain. The center column of the moving iron core is equipped with a rectangular lock column. The front plane of the lock column has a peach-shaped sliding groove. An elastic steel wire is installed on the opening plane of the center column of the static iron core, and the elastic steel wire slides in the required direction in the peach-shaped sliding groove of the lock column, which plays the role of self-locking when the load is energized and when the load is stopped.
