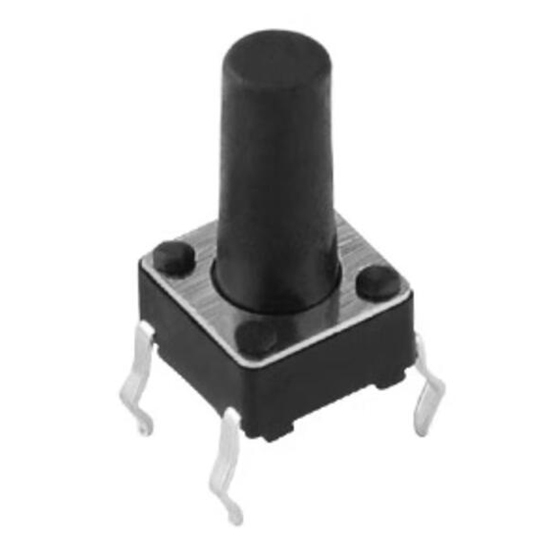

6x6x10mm Tact Push Button Switch, 4 Pin

The 10mm tactile push button switch features a slim design and compact size, ideal for applications where space is limited. ATO tactile push button switches are widely used in electronic toys, massage chairs, treadmills, cameras, recorders, etc., monitors, intercoms, etc.

Specification

• Model: ATO-TC-P6610
• Size: 6x6x10mm
• Rated Load: DC12V, 0.6A
• Insulation Resistance: >100MΩ
• Service Life: Approx. 100,000 cycles
• Contact Resistance: 0.03Ω
• Operating Force: 70-300gf
• Operation Force: 70-300gf

Life Test Method: Test the number of times it opens and closes until it is damaged, if not manually, a small motor can be used to drive the eccentric opening and closing switch, using a counter to record the number of times.

Features

• Tact push button switches are designed to be small and compact, making them ideal for use in electronic devices with limited space.
• 4 Pin tact switches are typically designed for momentary action, meaning that they are only activated while they are being pressed.
• Tact switches have a low profile, which means that they sit close to the circuit board and do not take up much vertical space.
• Tact switches are designed to be durable and long-lasting, with a high cycle life and resistance to mechanical stress.
• 6x6x10mm Tact switches require only a light touch to activate, making them easy to operate.

Dimension (Unit mm)

Applications

Tact switches, also known as tactile switches, have a variety of applications in electronics. The tact switch is mainly used for audio-visual equipment, digital products, remote control, game consoles, home appliances, security products, toys, computer products, printers, machine tools. control devices, money detectors, laser pens, etc.

Tips: What is a tact switch?

A tact switch, also known as a tactile switch, is a type of switch that is designed to be pressed by a user's finger or thumb. Tact switches are often used in electronic devices, such as keyboards, remote controls, and other consumer electronics.

Tact switches are usually small in size and have a spring-loaded mechanism that allows them to return to their original position when released. They are typically used for momentary contact, meaning that the switch is only activated while it is being pressed, and returns to its resting state when pressure is removed.

Tact switches are commonly used as input devices in electronic circuits, where they provide a simple and reliable way to initiate a signal or control function. They are also popular in DIY electronics projects, where they can be easily integrated into custom control panels or other interfaces.

Test the number of times it opens and closes until it is damaged, if not manually, a small motor can be used to drive the eccentric opening and closing switch, using a counter to record the number of times.
