Applications
10kVA/8000 Watts UPS is an uninterruptible power supply to provide emergency power to a load, and it is mainly used in computers, office equipment, test equipment, light systems, safe alarm systems, ray equipment, medical equipment, copy machines, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment, etc.

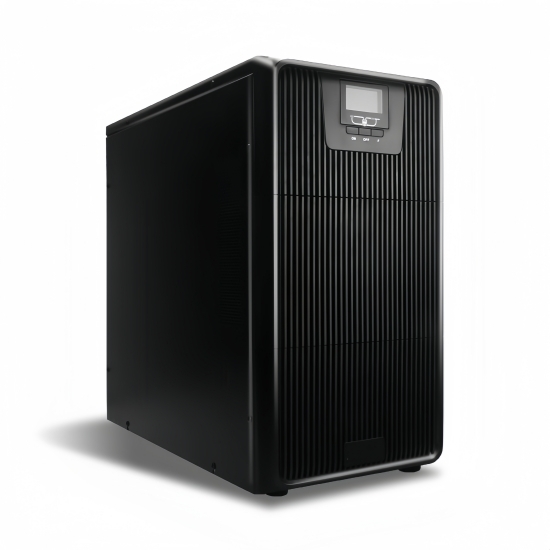

10kVA/8000W UPS Specification
Basics |
Model |
ATO-BE-10K |
Rated Capacity |
10000VA/8000W |
Phase |
Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard. |
Weight (kgs) |
16 |
Dimension (mm) |
442×190×318 |
Input |
Nominal Voltage |
208/220/230/240VAC |
Input Voltage Range |
110-300 VAC (Based on load at 50%), 176-300 VAC (Based on load at 100%) |
Frequency Range |
46-54 Hz or 56-64 Hz |
Power Factor |
≥0.99 @ Nominal Voltage (100% load) |
Output |
Output Voltage |
208/220/230/240VAC |
Voltage Regulation |
±1% |
Frequency Range (Synchronized Range) |
46-54 Hz or 56-64 Hz |
Current Crest Ratio |
50 Hz or 60 Hz ±0.1Hz |
Harmonic Distortion |
≤3% THD (Linear Load), ≤5 % THD (Non-linear Load) |
Transfer Time |
Zero |
Waveform (Batt. Mode) |
Pure Sinewave |
Efficiency |
AC Mode |
93% |
Battery Mode |
91% |
Battery |
Battery Type |
Depending on the capacity of external batteries |
Numbers |
16 - 20 (Adjustable) |
Charging Current (Max.) |
1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) |
Charging Voltage |
273 VDC 土1% (Based on 20pcs batteries) |
Indicators |
LCD |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
Alarm |
Battery Mode |
Sounding every 4 seconds |
Low Battery |
Sounding every second |
Overload |
Sounding twice every second |
Fault |
Continuously sounding |
Environment |
Humidity |
0-95% RH @ 0-40°C (non-condensing) |
Noise Level |
Less than 55dB @ 1 Meter |
Management |
Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC |
Optional SNMP |
Power management from SNMP manager and web browser |
Note:
1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.
2. Batteries that work with this UPS are not included, customers need to match lead-acid battery packs on their own, consult us for battery specifications.
3. If you need other output voltage range, please contact us.
Rear Panel Diagram
- External battery connector
- RS-232 communication port
- Intelligent slot
- USB communication
- Emergency power off function connector (EPO connector)
- Cooling fan
- Input circuit breaker
- Input/ Output terminal (Refer to Diagrams 3 and 6 for the details)
Tips: Troubleshooting UPS - the battery voltage is low but the battery cannot be charged for more than 10 hours.
Judging from the phenomenon, it is the fault of the battery and charging circuit, which can be inspected according to the following procedures.
- Check whether the input and output voltage of the UPS charging circuit is normal.
- If the charging circuit has normal input and abnormal output, disconnect the UPS battery to test again. If it is still abnormal, it is the fault of the charging circuit.
- If the charging circuit has normal input and output after the battery is disconnected, it indicates that the UPS battery has been damaged because of the long-term charging, long-term placement, and due life period.
