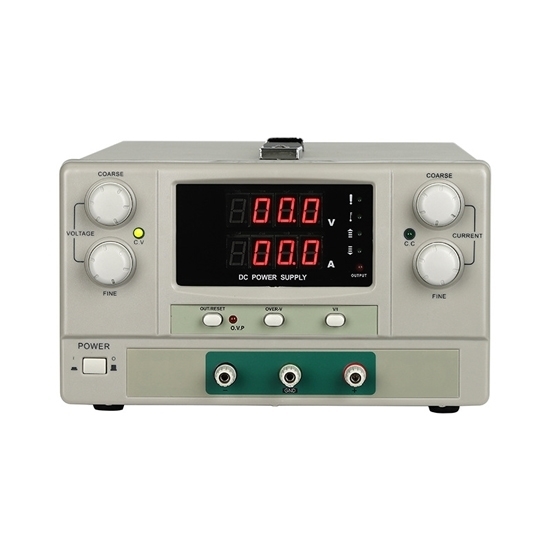

    10A 60V 600W Variable Linear DC Power Supply

    $672.59
    High efficiency 0 to 10 amp, 0 to 60 volt variable linear DC power supply is switching mode with 600W DC output. Output voltage and current are continuously adjustable at nominal value, with constant voltage (CV) / constant current (CC) output precision. This adjustable and regulated linear DC power provides a stable power source for diverse applications.
    *
    SKU: ATO-DCPS6010
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    An adjustable linear DC power supply is a regulated unit designed for electronics, providing variable voltage and current outputs. This power source is instrumental in testing and powering various electronic devices. Engineered with precision, it offers adjustable voltage and current settings, enabling users to fine-tune power parameters to suit specific requirements. The regulated nature ensures a stable output regardless of input fluctuations or load variations.

    Specification

    Model ATO-JK6010S
    Input Voltage 110V or 220V AC (+/- 10%)
    Output Voltage Range DC 0-60V
    Output Current Range 0-10A
    Output Power 600W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.1%+2d
    Voltage Display Resolution 100mV
    Current Display Resolution 10mA
    Efficiency >65%
    Voltage Regulation
    Load Regulation (CV) 1×10-5+8mV
    Line Regulation (CV) 1×10-5+3mV
    Ripple & Noise (P-P) 0.5mV
    Temperature Coefficient 300PPm/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-5+3mA
    Temperature Coefficient 500PPm/℃
    Others
    Protection Over Load and Over Voltage Protection
    Recovery Time ≤100µs
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Warranty 12 Months
    Size 303 (L) x 255 (W) x 155 (H) mm
    Weight 12kg


    Detail

    10A 20A 60V variable linear DC power supply detail

    Tips: What is the typical lifespan of a variable linear DC power supply?

    The lifespan of a variable linear DC power supply can vary based on factors such as quality, usage, and maintenance. Generally, well-manufactured power supplies can last for several years, often ranging from 10 to 20 years or more under normal operating conditions. However, factors like continuous heavy usage, exposure to extreme temperatures, and inadequate ventilation can contribute to a shorter lifespan. Regular maintenance, such as cleaning, proper calibration, and ensuring optimal operating conditions, can extend the life of the power supply. It's essential to follow manufacturer recommendations and adhere to usage guidelines to maximize the longevity of the equipment. In critical applications, redundancy and periodic replacement strategies may be employed to mitigate the risk of failure.
