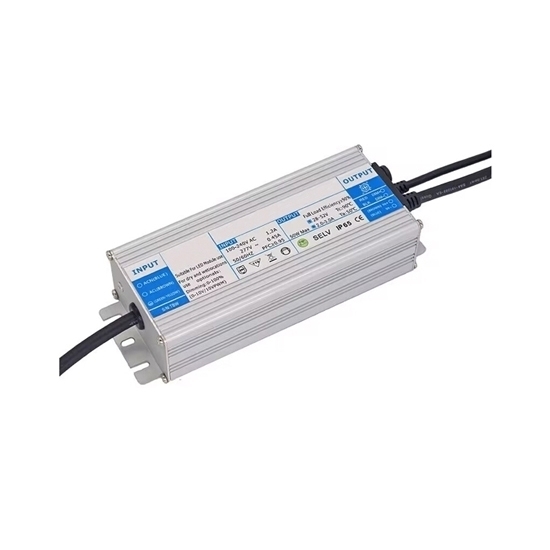

100W Constant Current LED Driver, LED Power Supply

100W constant current LED driver for grow lights provides precise current regulation, energy efficiency, and dimming options, available with output voltage 28~56V, input voltage 100~277V AC, and output current 1.5~2.5A and waterproof & rainproof functions.

Specifications

• Model: ATO-TBW-LFA-100
• Input Voltage: 100~277V AC
• Output Power: 100W
• Output Voltage: 28V~56V
• Output Current: 1.5A~2.5A
• Mode: Constant Current
• Power Factor: 0.95
• Size: 170mmx56mmx36mm
• Efficiency: 90%
• Output Frequency: 50/60Hz
• Certificated: UL/CE/RoHS/SAA/ENEC/FCC/EMC/CCC
• Application: LED Lighting（Especially for Plant Grow Lights)
• Waterproof Grade: IP65/IP67
• Protection: Over-Heat, Over-Load, Short-Circuit & Open-Circuit
• Test: 100% Full Load Burn-in Test Over 4 Hours
• Work Temperature: -40℃~+50℃
• Storage Temperature: -40℃~+90℃
• Relative Operation Humidity: 10%RH~90%RH
• Relative Storage Humidity: 5%RH~95%RH
• Shell Material: Aluminum

Dimming Methods

• (Default) Knob Dimming + (RJ11 Network Port)
• 3-in-1 Dimming (0-10V/PWM/Resistor)
• 3-in-1 Dimming + 12V/300mA Auxiliary Source

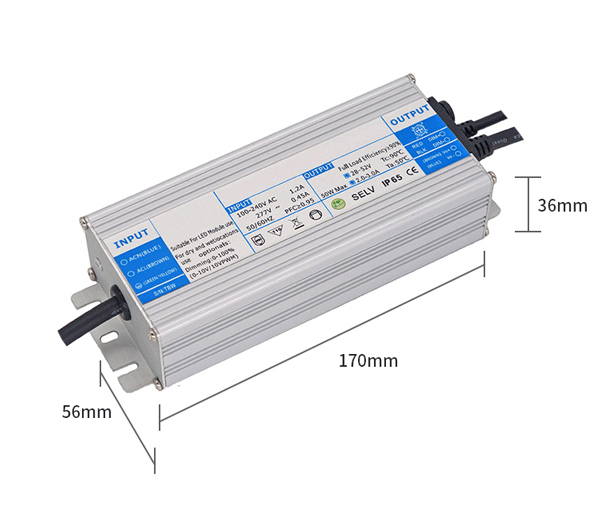

Dimension (Unit: mm)

Applications

Constant current LED drivers are commonly used in various scenarios such as commercial and residential lighting installations, architectural lighting designs, outdoor and landscape lighting, signage and display boards, automotive lighting systems, horticultural lighting for indoor farming or plant growth, and LED strip lighting. The constant current output ensures consistent brightness, uniform illumination, and proper functioning of the LEDs, enabling energy-efficient and long-lasting lighting solutions in diverse applications.

Tips: What is a LED driver?

A LED driver, also known as an LED power supply or LED transformer, is a device that regulates and provides the necessary electrical power to light-emitting diodes (LEDs). LED drivers are specifically designed to match the electrical requirements of LEDs and ensure their proper operation.

LEDs are semiconductor devices that require a specific voltage and current to function optimally. Unlike traditional incandescent or fluorescent lamps, LEDs are more sensitive to variations in voltage and current. LED drivers address these requirements and provide the appropriate electrical parameters for reliable and efficient LED operation.
