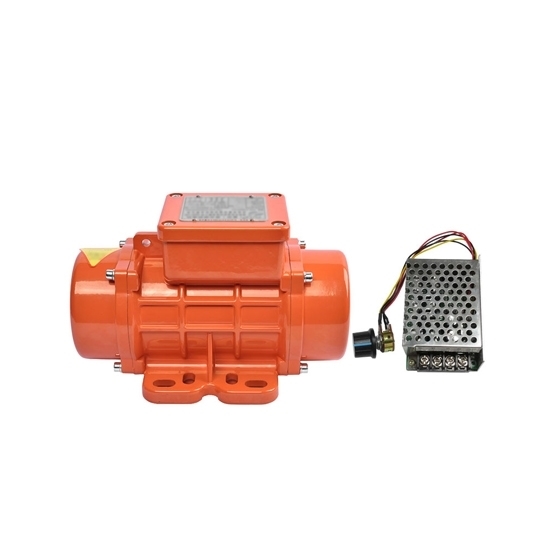

Powerful dc brushed vibration motor for sale, 100W power, voltage 12 volt, 4.2 amps, 3000 rpm, exciting force 0.5 kN, speed controller can be selected, vibration motor has the characteristics of small size and strong power.
Specification
Model |
ATO-MVE-50DC12 |
Volatge |
24V |
Current |
9.4A |
Power |
100W |
Speed |
3000 rpm |
Force |
50 Kg, 0.5 kN |
Frame No |
10 |
Protection Level |
IP65 |
Insulation Grade |
F |
Weight |
4.5kg |
Certificate |
CE |

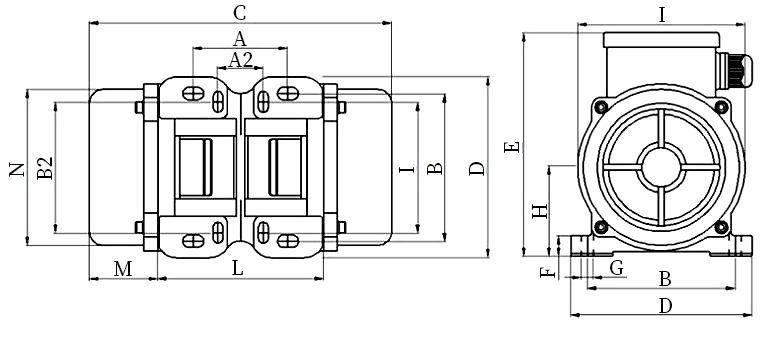

100W DC Brushed Vibration Motor Dimension (unit: mm)
A |
A1 |
B |
B1 |
C |
D |
E |
F |
G |
G1 |
H |
L |
K |
M |
N |
Cable Gland |
70 |
33 |
107 |
97 |
212 |
130 |
135 |
12.5 |
10 |
10 |
52.5 |
120 |
17 |
46 |
88 |
M16*1.5 |
100W DC Brushed Vibration Motor Structure
Vibration motor power supply
Since the output cable of the vibration motor is subject to vibration, a heavy-duty four-core cable should be used. It is not allowed to bend suddenly near the cable outlet. It should have a bending radius 8-9 times larger than the outer diameter of the cable, and then fix the cable to a stationary position. Moving machine or frame. The distance is about 0.6 meters to 0.9 meters. The clamps of the fixed cables should be padded with soft insulating materials to avoid friction and damage to the cables. One end of the ground wire of the four-core cable is connected to the ground screw in the junction box, and the other end must be reliably grounded. Small-size vibration motor, there is no junction box on the casing, use a heavy-duty three-core cable to connect directly from the inside of the motor. A grounding screw is installed near the foot of the motor, and it must be grounded reliably during use.
