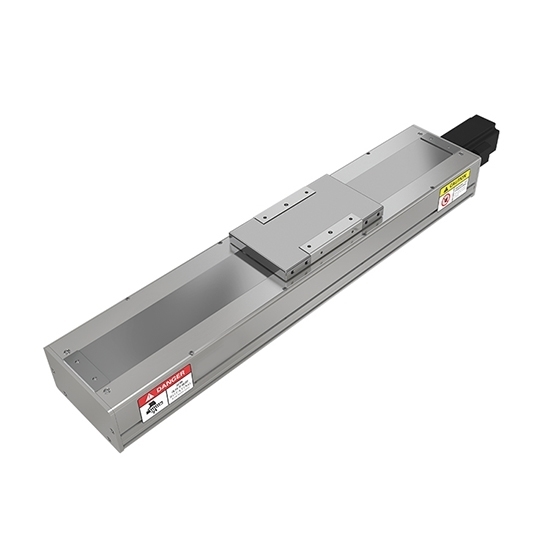

100W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

5 out of 5 based on 1 reviews | Write a review

$939.69

Linear slide works at 100W power, driven by ball screw (diameter 16mm). Available stroke 100mm to 1050mm, screw path 5/10/20mm, maximum speed 900mm/s. The motorized linear guide rail can used with servo motor, optional for configuration.

Stroke *
Ball Screw Lead *
Motor Position *
Sensor Switch *
Servo Motor

SKU: ATO-LS-1050100

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Ball Screw Driven Linear Slide Dimensions
Proposition 65 Warning

The ball screw driven linear slide is a linear motion system, which includes linear guide rail, sliding block, motor and sensor. 11 strokes for selection, minimum 100mm, maximum 1050mm, screw path 5/10/20mm, ball screw diameter 16mm. High precision, convenient assembly and low cost.

Basic Specification

Model		ATO-C100
Stroke		100mm~1050mm (100mm pitch)
Ball Screw Diameter		16mm
Repeatability Accuracy		± 0.01mm
Ball Screw Lead		5mm	10mm	20mm
Max. Speed		225 mm/s	450 mm/s	900 mm/s
Max. Payload	Horizontal	50 kg	30 kg	18 kg
	Vertical	12 kg	8 kg	3 kg
Rated Thrust		341/683 N	170/341 N	85/174 N
Matching Servo Motor Power*		100W
Coupling		108 / 1011 (14) mm
Home Sensor	Outside	EE-SX674 (NPN)
	Built-in	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	Ball Screw Lead (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Ball Screw Lead (mm)	Horizontal	Vertical	Max. Speed (mm/s)	100	200	300	400	500	600	700	800	900	1000	1050
ATO-C100	105	5	50	12	225	-	-	-	-	-	-	-	225	175	125	100
		10	30	8	450	-	-	-	-	-	-	-	450	350	250	200
		20	18	3	900	-	-	-	-	-	-	-	900	700	500	400

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

The linear slide is a fully enclosed linear motion system, which is mainly composed of an aluminum body, a diagonal bearing holder, a cover plate, a slide block and other components.
Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat.
The flexible stainless steel is sealed, and on the motion seat, the whole linear motion system can meet the requirements of dust-free level.

Motor Mounting Dimensions (Unit: mm)

100W liner slide motor mounting dimensions

Motor Power	Motor Size	Shaft Diameter
100W	38mm	8mm

Tips: Precautions for disassembly of ball screw driven linear slide.

Do not remove the slider from the guide rail of ball screw driven linear slide without necessity. If you must disassemble, first align the auxiliary ball screw driven linear slide guide rail, then remove the slider.
It is strictly forbidden to disassemble the parts of ball screw driven linear slide at will, so as not to affect the precision and sensitivity. Do not install ball screws that do not meet the requirements on the linear slide at will.

Note: The ball screw driven linear slide has been filled with lubricating oil before leaving the factory. If you want to clean, you must dry the ball screw driven linear slide first, and then add lubricating oil. In the absence of lubrication, the ball screw driven linear slide shall not be operated.

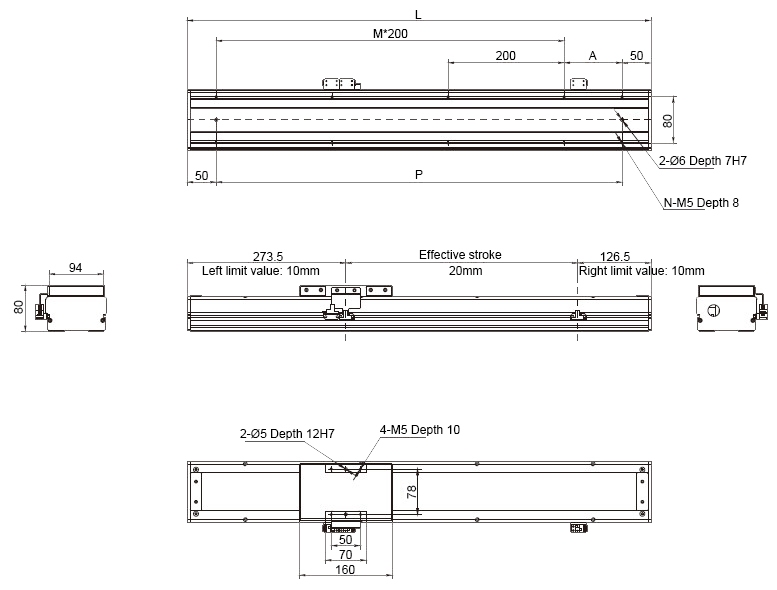

Dimensions of Ball Screw Driven Linear Slide with Motor Built-in (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1050
L	500	600	700	800	900	1000	1100	1200	1300	1400	1450
A	200	100	200	100	200	100	200	100	200	100	150
M	1	2	2	3	3	4	4	5	5	6	6
N	4	8	8	10	10	12	12	14	14	16	16
P	400	500	600	700	800	900	1000	1100	1200	1300	1350
Weight (kg)	6.75	7.60	8.45	9.30	10.15	11.00	11.85	12.70	13.55	14.40	14.83

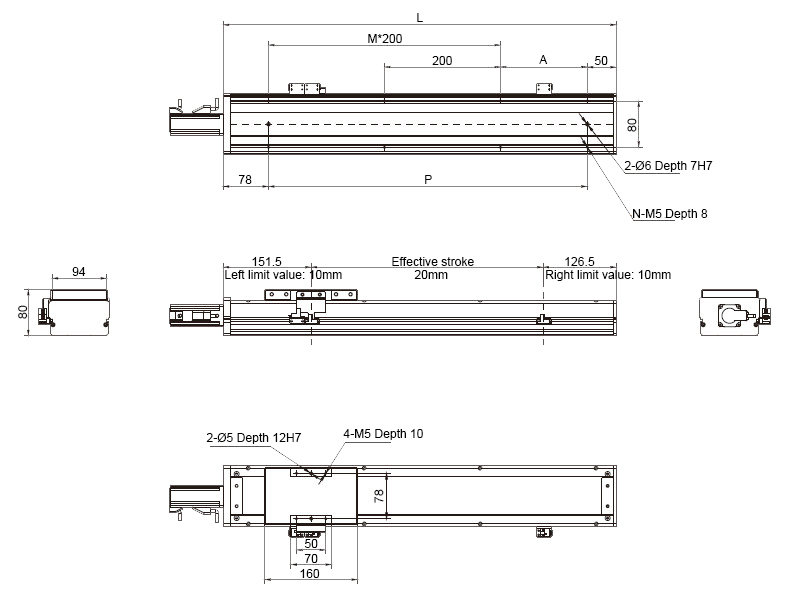

Dimensions of Ball Screw Driven Linear Slide with Motor Exposed (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1050
L	378	478	578	678	778	878	978	1078	1178	1278	1328
A	50	150	50	150	50	150	50	150	50	150	200
M	1	1	2	2	3	3	4	4	5	5	5
N	6	6	8	8	10	10	12	12	14	14	14
P	250	350	450	550	650	750	850	950	1050	1150	1200
Weight (kg)	6.02	6.87	7.72	8.57	9.42	10.27	11.12	11.97	12.82	13.67	14.10

Dimensions of Ball Screw Driven Linear Slide with Motor on Left Side (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1050
L	397	497	597	697	797	897	997	1097	1197	1297	1347
A	50	150	50	150	50	150	50	150	50	150	200
M	1	1	2	2	3	3	4	4	5	5	5
N	6	6	8	8	10	10	12	12	14	14	14
P	250	350	450	550	650	750	850	950	1050	1150	1200
Weight (kg)	7.45	8.31	9.17	10.03	10.89	11.75	12.61	13.47	14.33	15.19	15.62

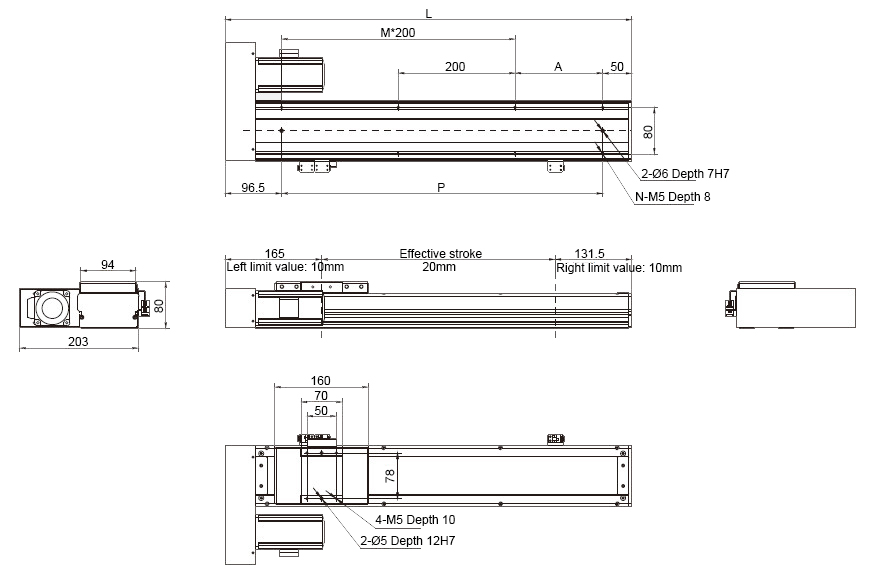

Dimensions of Ball Screw Driven Linear Slide with Motor on Right Side (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1050
L	397	497	597	697	797	897	997	1097	1197	1297	1347
A	50	150	50	150	50	150	50	150	50	150	200
M	1	1	2	2	3	3	4	4	5	5	5
N	6	6	8	8	10	10	12	12	14	14	14
P	250	350	450	550	650	750	850	950	1050	1150	1200
Weight (kg)	7.45	8.31	9.17	10.03	10.89	11.75	12.61	13.47	14.33	15.19	15.62

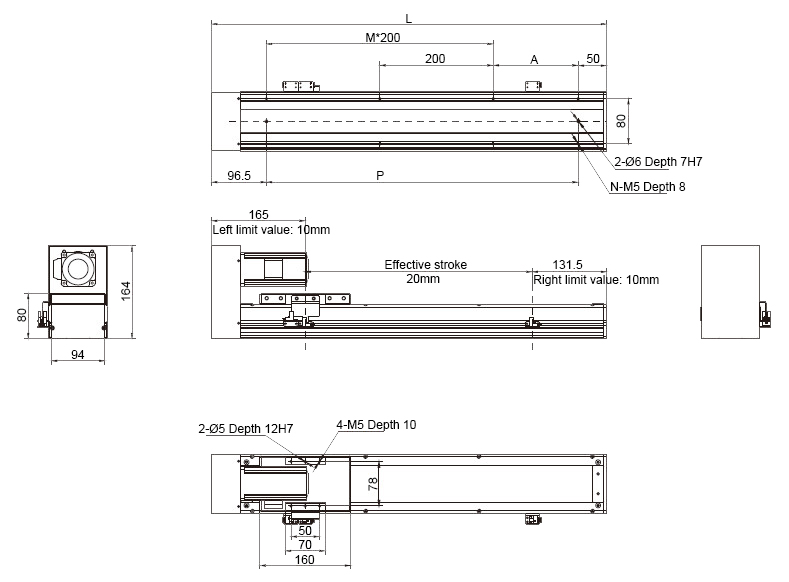

Dimensions of Ball Screw Driven Linear Slide with Motor on Top Side (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1050
L	397	497	597	697	797	897	997	1097	1197	1297	1347
A	50	150	50	150	50	150	50	150	50	150	200
M	1	1	2	2	3	3	4	4	5	5	5
N	6	6	8	8	10	10	12	12	14	14	14
P	250	350	450	550	650	750	850	950	1050	1150	1200
Weight (kg)	7.65	8.51	9.37	10.23	11.09	11.95	12.81	13.67	14.53	15.39	15.82

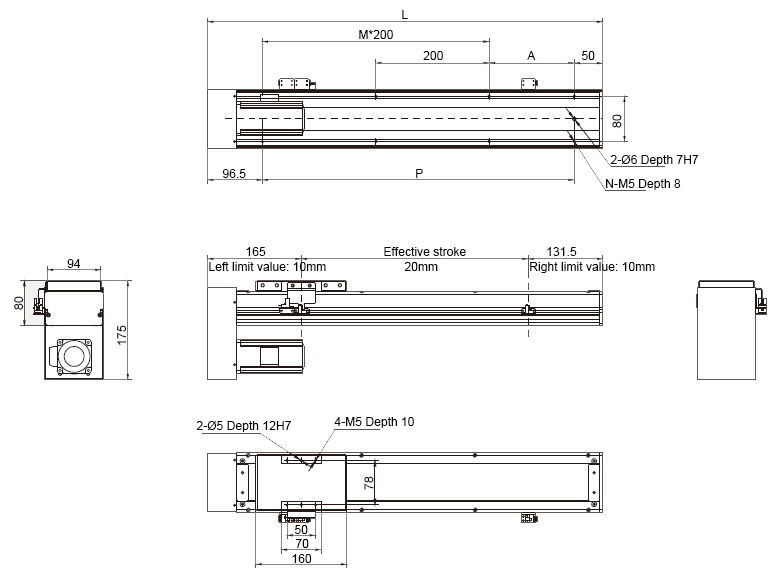

Dimensions of Ball Screw Driven Linear Slide with Motor on Bottom Side (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1050
L	397	497	597	697	797	897	997	1097	1197	1297	1347
A	50	150	50	150	50	150	50	150	50	150	200
M	1	1	2	2	3	3	4	4	5	5	5
N	6	6	8	8	10	10	12	12	14	14	14
P	250	350	450	550	650	750	850	950	1050	1150	1200
Weight (kg)	7.65	8.51	9.37	10.23	11.09	11.95	12.81	13.67	14.53	15.39	15.82
