    1000mm Magnetostrictive Displacement Sensor for wallboard machine

    $979.86
    Aluminum alloy rail type magnetostrictive displacement sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for wallboard machine and other CNC machinery worked in large vibration.
    SKU: ATO-MSR-B1000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

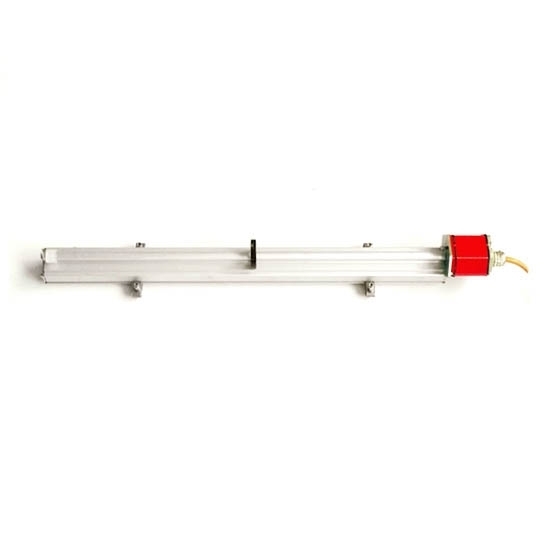

    Magnetostrictive linear displacement sensor with measuring range 1000mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive sensors are widely used in all kinds of CNC machinery that always working in large vibration.

    Specification:

    Basics Model ATO-MSR-B1000
    Measuring range 0~1000 mm
    Shipping weight 5.5 kg
    Length 1173.1 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Temperature excursion ≤0.001%FS
    Operating voltage 24V DC
    Current drain 5~16mA
    Vibration coefficient 5g/10-2000Hz/IEC standards IEC standards 68-2-6
    Operating temperature -40℃~85℃
    Load characteristic Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
    Output 0~5V; 0~10V; 0~20mA; 4~20mA
    Installation method Fixed clip, with specific screw M5X20
    Magnet type Slider magnet, levitating magnet
    Protection Class IP65

    Dimensional drawing (unit: mm):
    magnetostrictive sensor rail type dimensional drawing-b
    Installation diagram:
    magnetostrictive sensor rail type installation drawing
    Tips: Magnetostrictive sensors apply in hydraulic mill control
    Hydraulic mill is the main equipment to produce black and colorful strip, the main index including tolerance of strip thickness, strip shape, production capacity. Of which, tolerance of strip thickness is the key index. Tolerance of strip thickness control is the most important step in the whole rolling process. In control unit (process), inspecting oil cylinder position (roll gap) is the most important. Oil cylinder position value is the feedback value of closed loop controlled by roll gap. According to mill bounding principle, roll gap control means control the strip rolling thickness. Refer to automatic gain control (AGC) of hydraulic mill, the position detection of hydraulic oil cylinder normally adopts magnetostrictive sensor.
