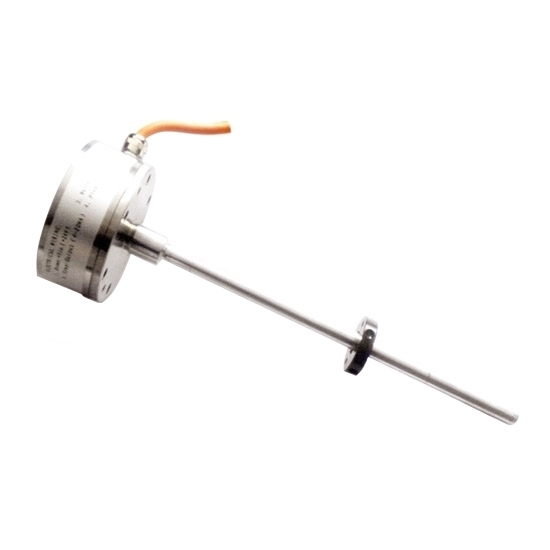

    1000mm Magnetostrictive Displacement Sensor for hydraulic cylinder

    5 out of 5 based on 1 reviews | Write a review
    $979.86
    Magnetostrictive displacement transducer with closed design, suitable for hydraulic cylinder with U-shaped earrings, high precision, non-contact, anti-interference ability, anti-fouling, oil-proof, waterproof, corrosion resistance.
    SKU: ATO-MSD-WA1000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive sensors have effective travel 50mm-5000mm. The length of electronic bin is 34mm, the length of the buffer area both ends can be defined by the customer. Magnetostrictive displacement sensors can be widely used in mobile machinery, power machinery, construction machinery, etc.

    Specification:

    Basics Model ATO-MSD-WA1000
    Measuring range 0~1000 mm
    Shipping weight 5.5 kg
    Length 1148.3 mm
    Width 97 mm
    Technical parameters Linearity ≤0.03%FS (minimum±50μm)
    Repeatability ≤0. 001%FS
    Working Voltage 24VDC±10%
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0-5V / 0-10v / 4-20mA
    Temperature - 40℃~+85℃
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
    Electronic bin material 304 or 316L stainless steel (special custom-made)
    Type of lead wire PG7 connection (waterproof joint); Aviation plug
    Protection Class IP68 (waterproof joint), IP67 (aviation plug)
    Installation method Six M6X16
    effective travel in this series (customizable) 50-5000mm

    Installation diagram (unit: mm):
    1. PG7 connection
    magnetostrictive sensor WA series PG7 connection
    2. Aviation plug connection
    magnetostrictive sensor WA series aviation plug connection
    Tips: Magnetostrictive sensors apply in hydraulic system of wind turbine generator system
    In hydraulic system of wind turbine generator system, linear displacement sensor plays an important role in measuring hydraulic oil cylinder piston stroke, while magnetostrictive displacement sensor becomes the best among all stroke measuring displacement sensors in different industry, relying on its measuring accuracy, reliability, environment adaptation etc. Magnetostrictive linear displacement sensors are widely used in wind power generation field.
