1000 Watt Pure Sine Wave Power Inverter, 12 Volt DC to 110 Volt AC

Pure sine wave power inverter is desighed to convert 12V, 24V or 48V DC to 110V, 120V, 220V, 230V or 240V AC, with universal AC outlet and USB port for multi-purpose charging your electronics or devices on the vacations, work trips or camping.

Features

• 1000W continuous and 2000W surge power
• Pure sine wave inverter, capable of producing clean & stable electricity
• Soft-start technology
• USB charging port for powering your phone, laptop, etc.
• Aluminum alloy casing with good heat dissipation
• Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
• ON/OFF switch design, easy to use
• Intelligent cooling fan, long working life

Specification

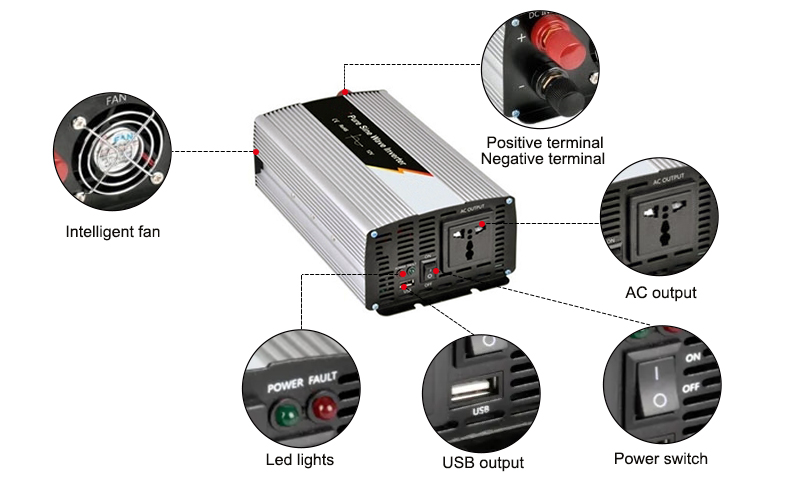

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

LCD Display (Optional)

The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.

Protection Functions & Applications

• Reverse Polarity Protection
  Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
• Short Circuit Protection
  Automatically self-protect when short circuit occurs – Red LED light ON.
• Low Voltage Protection
  Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
• Over Voltage Protection
  Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
• Over Temperature Protection
  Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
• Overload Protection
  Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.


Tips: Where is a right placement of power inverter in a car?

First of all, the power inverter should be far away from water, so there is no teacup nearby. Once there is any sudden braking during driving, the tea is easy to splash out of the cup, especially the unsealed tea cup. Once the splashed tea falls on the inverter, the entire inverter will be destroyed and need to be repaired. Besides, it cannot be installed in a place where it can easily splash into the rain.

Secondly, it is not allowable to place the car power inverter near the sun or near the heater outlet. As the relevant data showed, it is better that the operating temperature of the inverter is not more than 40 degrees. Once the temperature gets high, various problems may occur to the inverter.

Finally, a ventilated, dry environment is necessary. Ventilation and drying can make the inverter work more smoothly. Besides, make sure that there is not much room for debris in this area. Of course, be sure to keep away from explosive flammable substances, otherwise it is easy to produce a variety of disasters because the power inverter will generate heat when operating.
