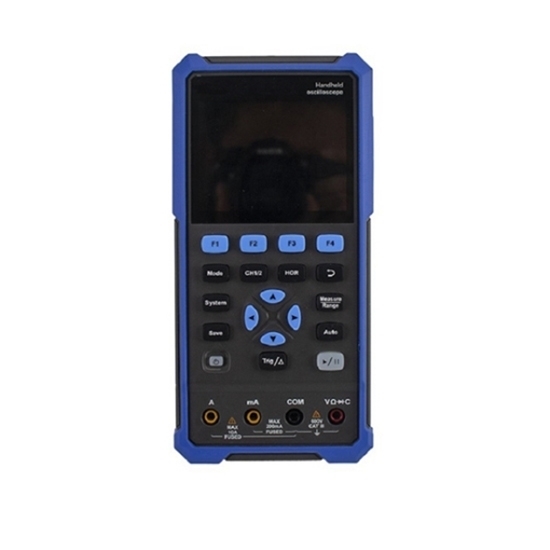

100 MHz Handheld Oscilloscope, 500 MSa/s, 2 Channels

5 out of 5 based on 1 reviews | Write a review
$401.75
Low price handheld oscilloscope with brandwidth 100MHz for sale online, 500 MSa/s sampling rate, dual channel oscilloscope has 8K storage depth. The digital oscilloscope built-in multimeter which is very convenient for the job. The digital handheld oscilloscope has advantages of small size,light weight, multifunction and long service life.
SKU: ATO-HO-100
30-day Returns
Free Shipping
Delivery date: 6-12 days

A cost-effective digital oscilloscope with 100 MHz bandwidth, 500 MSa/s sample rate, 2 channels. The digital oscilloscope built-in multimeter which is very convenient for the job and the oscilloscope is much lighter, easier, and perfect for field use. Practical and intuitive menu page layout, the 100 MHz oscilloscope is intuitive and handy in its use

Specification

Performance Characteristics

Model ATO-HDS2102
Bandwidth 100MHz
Channel 2 channel
Sample rate 500MSa/s
Acquisition model Sample, Peak detect
Record length 6K
Display 3.5 inch LCD
Waveform refresh rate 10000 wfrms/s
Input coupling DC, AC, Ground
Input impedance 1 MΩ±2%, in parallel with 16 pF±10 pF
Probe attenuation 1X,10X,100X,1000X
Max. input voltage 400V (DC+AC, PK - PK)
Bandwidth limit(typical) 20MHz / Full bandwidth
Sampling rate range

2ns/div - 1000s/div, step by 1- 2- 5

Sensitivity Resolution 10mV/div~10V/div
Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
Rise time (at input, Typical) ≤8ns
Trigger type Edge
Trigger model Auto, Normal, single
Trigger level range ±4 div from the screen center
Automatic measurement Period, Frequency, Mean, PK-PK, Max, Min
Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface USB Type-C

Digital Multimeter Specification

Full-scale reading 4.5 digitals (max 20000 count)
Testing Modes

Voltage, Current, Resistance, Capacitance, Diode, Continuity

Maximum Input Voltage AC 750V, DC 1000V
Maximum Input Current DC: 10A, AC: 10A
Diodes Test 0-2V


Accessories

  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
  • Multimeter
  • Lead
  • BNC plug to alligator clips cable
  • Soft Bag

Dimension (mm)

Handheld oscilloscope

Details

100 MHz Handheld Oscilloscope Details

Tips: What is a handheld oscilloscope?

A handheld oscilloscope is a handheld electronic measuring instrument used to display the instantaneous value of the measured trajectory changes, with convenient portability, easy operation, and other characteristics. It can transform invisible electrical signals into visible images, which is convenient for people to study the change process of various electrical phenomena. It uses a narrow, high-speed electron beam composed of electrons, hitting the screen surface coated with fluorescent substances, it can produce a fine point of light. Under the action of the measured signal, the electron beam is like a pen's tip, and the measured signal's instantaneous value can be depicted on the screen surface of the change curve. Using the oscilloscope can observe a variety of different signal amplitude changes with a time waveform curve, but also can use it to test a variety of different power, such as voltage, current, frequency, phase difference, amplitude modulation, and so on.
