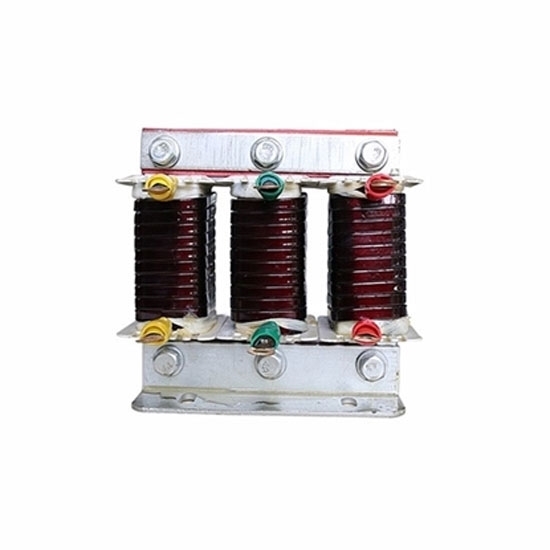

    100 hp (75 kW) AC Line Reactor, 3 Phase Output

    $653.12
    Low cost VFD output line reactor, 100 hp power, with rated current 200A, 3 phase, selectable voltages 220V, 380V, 400V, 410V, 440V, 460V or 480V, carrier frequency of 2-8 KHz, it's reliable and economical.
    SKU: ATO-OLR-075
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days
    3 phase AC output line reactor work frequency 50/60Hz, 100 hp or 75 kW, has its unique features of simple and rugged construction, and minimum maintenance, high reliability and easy operation and low price.

    3-Phase Line output Reactor Specifications

    Basic Model ATO-OCR-0200-035U-0.4SA
    Recommended VFD Model GK3000-4T0750G (100 hp three phase VFD)
    Phase 3 Phase
    Power 100 hp (75 kW)
    Weight 17 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 150 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.047 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

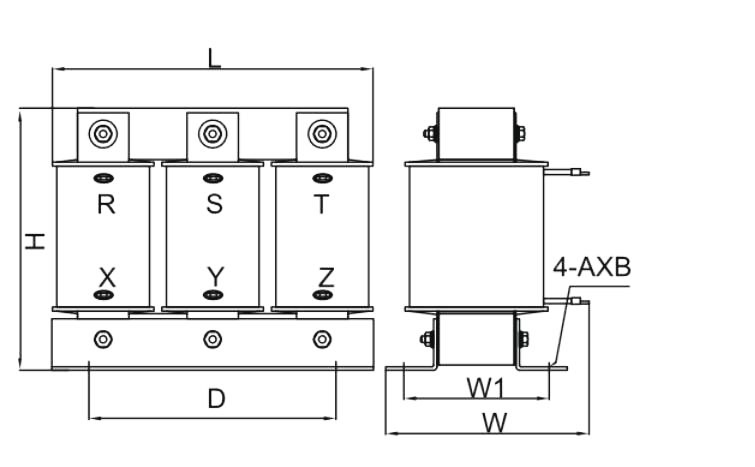

    75 kW 3-Phase Output Line Reactor Mounting Dimension

    15hp (11kW) 3 phase line reactor

    Dimension(±5mm)
    L D W W1 H A×B
    230 150 170 88 220 11×18

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram

    Tips: How to solve the surface discharging of line reactor?
    When it is raining, the parts with low temperature rise have conductive water film and high surface leakage current. Near end backflow lead row with concentrated surface electric leakage and The spots on the surface of waist have dirty and wet charge and electric leakage traces. Hydrophobic coating can restrain leakage current and prevent any form of surface discharge effectively.

    The end adopts the improvement measures of pre-burried annular current sharing electrode structure to solve the concentrated current leakage on lower end surface. Electric arcs can be deployed even without hydrophobic coating or when hydrophobic coating fails. As the currently best structure improvement measure, rainhat And rain protection layer can restrain surface current leakage to some extent.
